TPS3710 - 宽 VIN 电压检测器

TPS3710是TI德州仪器公司的一款无产品，TPS3710是宽 VIN 电压检测器，本站介绍了TPS3710的封装应用图解、特点和优点、功能等，并给出了与TPS3710相关的TI元器件型号供参考。

TPS3710 - 宽 VIN 电压检测器 - 无 - 监控器和复位IC - 德州仪器

产品特性

Wide Supply Voltage Range: 1.8 V to 18 V
Adjustable Threshold: Down to 400 mV

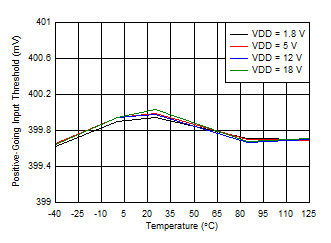

High Threshold Accuracy:
- 1.0% Over Temperature
- 0.25% (Typical)
Low Quiescent Current: 5.5 µA (Typical)
Open-Drain Output
Internal Hysteresis: 5.5 mV (Typical)
Temperature Range: –40°C to +125°C
Packages:
- SOT-6
- 1.5-mm × 1.5-mm WSON-6

产品应用

Industrial Control Systems
Automotive Systems
Embedded Computing Modules
DSP, Microcontroller, or Microprocessor Applications
Notebook and Desktop Computers
Portable- and Battery-Powered Products
FPGA and ASIC Applications

产品说明

The TPS3710 wide-supply voltage detector operates over a 1.8-V to 18-V range. The device has a high-accuracy comparator with an internal 400-mV reference and an open-drain output rated to 18 V for precision voltage detection. The monitored voltage can be set with the use of external resistors.

The OUT pin is driven low when the voltage at the SENSE pin drops below (VIT–), and goes high when the voltage returns above the respective threshold (VIT+). The comparator in the TPS3710 includes built-in hysteresis for filtering to reject brief glitches, thereby ensuring stable output operation without false triggering.

The TPS3710 is available in a SOT-6 package, and a 1.5-mm × 1.5-mm WSON-6 package, and is specified over the junction temperature range of –40°C to +125°C.

Device Information (1)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS3710	SOT (6)	2.90 mm × 1.60 mm
TPS3710	WSON (6)	1.50 mm × 1.50 mm
