TPS3839G25 - 150nA 超低电流、超小型电压监控器

TPS3839G25是TI德州仪器公司的一款无产品，TPS3839G25是150nA 超低电流、超小型电压监控器，本站介绍了TPS3839G25的封装应用图解、特点和优点、功能等，并给出了与TPS3839G25相关的TI元器件型号供参考。

TPS3839G25 - 150nA 超低电流、超小型电压监控器 - 无 - 监控器和复位IC - 德州仪器

产品特性

Ultralow Supply Current: 150 nA (Typical)
Operating Supply Voltage: 0.9 V to 6.5 V
Valid Reset for VDD > 0.6 V
Push-Pull RESET Output
Factory-Trimmed Reset Threshold Voltages
Temperature Range: –40°C to 85°C
Packages: 1-mm × 1-mm X2SON or 3-Pin SOT23

产品应用

Portable and Battery-Powered Equipment
Metering
Industrial Equipment
Cell Phones
Glucose Monitors
Tablets
Wearables

产品说明

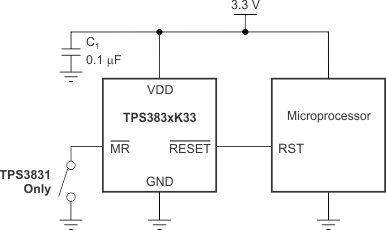

The TPS3831 and TPS3839 devices (both referred to as TPS383x) are ultralow current (150 nA, typical), voltage supervisory circuits that monitor a single voltage. Both devices initiate an active-low reset signal whenever the VDD supply voltage drops below the factory-trimmed reset threshold voltage. The reset output remains low for 200 ms (typical) after the VDD voltage rises above the threshold voltage and hysteresis. These devices are designed to ignore fast transients on the VDD pin. The TPS3831 device includes a manual reset input that forces RESET low when MR is low.

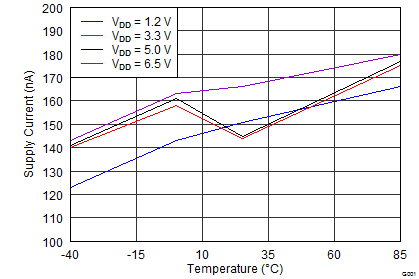

The ultralow current consumption of 150 nA makes these voltage supervisors ideal for use in low-power and portable applications. The TPS383x devices are specified to have the correct output logic state for supply voltages down to 0.6 V.

The TPS383x devices feature precision factory-trimmed threshold voltages and extremely low-power operation. The TPS3831 device is available in a 4-pin, 1-mm × 1-mm (DQN) X2SON package. The TPS3839 device is available in a 3-pin SOT23 (DBZ) package or a 4-pin, 1-mm × 1-mm (DQN) X2SON package.

产品器件信息

PART NUMBER	PACKAGE	PACKAGE SIZE (NOM)
TPS3831	X2SON (4)	1.00 mm x 1.00 mm
TPS3839	SOT-23 (3)	2.92 mm x 2.37 mm
TPS3839	X2SON (4)	1.00 mm x 1.00 mm
