TPS51117 - 针对轻载效率优化的具有 DCAP? 模式的 1.8V 至 28V 输入同步 降压控制器

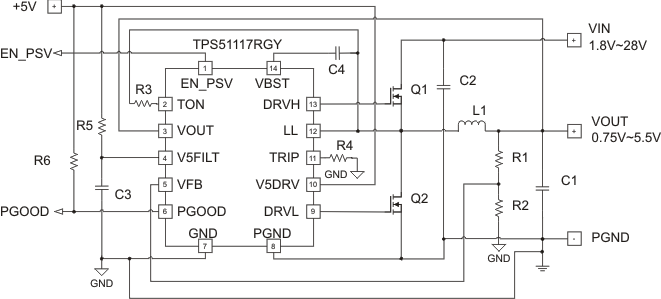

TPS51117是TI德州仪器公司的一款控制器(外部开关)产品,TPS51117是针对轻载效率优化的具有 DCAP? 模式的 1.8V 至 28V 输入同步 降压控制器,本站介绍了TPS51117的封装应用图解、特点和优点、功能等,并给出了与TPS51117相关的TI元器件型号供参考。
TPS51117 - 针对轻载效率优化的具有 DCAP? 模式的 1.8V 至 28V 输入同步 降压控制器 - 控制器(外部开关) - DC/DC开关稳压器 - 德州仪器
- High Efficiency, Low Power Consumption, 4.5-μA Typical Shutdown Current
- Fixed Frequency Emulated On-Time Control, Adjustable from 100 kHz to 550 kHz
- D-CAP™ Mode With 100-ns Load Step Response
- < 1% Initial Reference Accuracy
- Output Voltage Range: 0.75 V to 5.5 V
- Wide Input Voltage Range: 1.8 V to 28 V
- Selectable Auto-Skip/PWM-Only Operation
- Temperature Compensated (4500 ppm/°C) Low-Side RDS(on) Overcurrent Sensing
- Negative Overcurrent Limit
- Integrated Boost Diode
- Integrated OVP/UVP and Thermal Shutdown
- Powergood Signal
- Internal 1.2-ms Voltage Soft-Start
- Integrated Output Discharge (Soft-Stop)
- Notebook Computers
- I/O Supplies
- System Power Supplies
The TPS51117 device is a cost-effective, synchronous buck controller for POL voltage regulation in notebook PC applications. The controller is dedicated for the operation of the Adaptive On-Time D-CAP mode. This mode provides ease-of-use, low external component count, and fast transient response. Auto-skip mode for high efficiency down to the milliampere load range, or PWM-only mode for low-noise operation is selectable.
The current-sensing scheme for positive overcurrent and negative overcurrent protection is loss-less low-side RDS(on) sensing plus temperature compensation. The device receives a 5-V (4.5 V to 5.5 V) supply from another regulator such as the TPS51120 or TPS51020. The conversion input can be either VBAT or a 5-V rail, ranging from 1.8 V to 28 V, and the output voltage range is from 0.75 V to 5.5 V.
The TPS51117 is available in a 14-pin VQFN or a 14-pin TSSOP package and is specified from –40°C to 85°C.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS51117 | TSSOP (14) | 4.40 mm × 5.00 mm |
| VQFN (14) | 3.50 mm × 3.50 mm |
