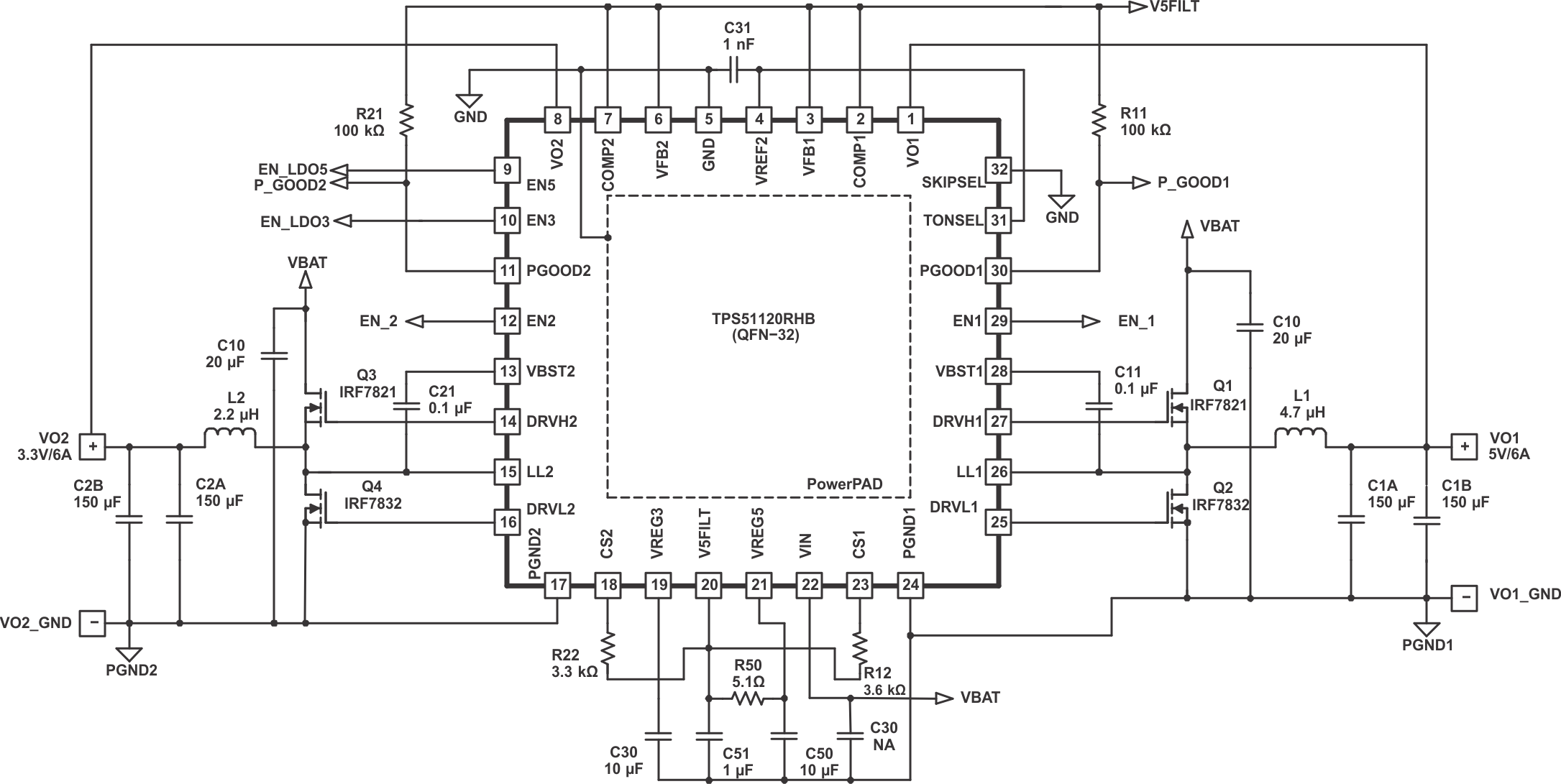

TPS51120 - 产品图解:
TPS51120-用于笔记本电源的具有 100mA 待机寄存器的双电流模式同步步降控制器
TPS51120-控制器(外部开关)-DC/DC开关稳压器-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS51120介绍
TPS51120 - 用于笔记本电源的具有 100mA 待机寄存器的双电流模式同步步降控制器

TPS51120是TI公司的一款控制器(外部开关)产品,TPS51120是用于笔记本电源的具有 100mA 待机寄存器的双电流模式同步步降控制器,本页介绍了TPS51120的产品说明、应用、特性等,并给出了与TPS51120相关的TI元器件型号供参考。

TPS51120 - 用于笔记本电源的具有 100mA 待机寄存器的双电流模式同步步降控制器 - 控制器(外部开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • 3.3-V and 5-V 100-mA Bootstrapped Standby Regulators with Independent Enables
  • Selectable D-CAP™ Mode Enables Fast Transient Response Less than 100 ns
  • Selectable Low Ripple Current Mode
  • Less than 1% Internal Reference Accuracy
  • Selectable PWM-only/Auto-skip Modes
  • Low-side RDS(on) Loss-less Current Sensing
  • RSENSE Accurate Current Sense Option
  • Internal Soft-Start and Integrated VOUT Discharge Transistors
  • Integrated 2-V Reference
  • Adaptive Gate Drivers with Integrated Boost Diode
  • Powergood for Each Channel with Delay Timer
  • Fault Disable Mode
  • Supply Input Voltage Range: 4.5 V to 28 V
产品应用

    Notebook Computers System Bus and I/O

产品说明

The TPS51120 is a highly sophisticated dual, synchronous step-down controller. It is a full featured controller designed to run directly off a three- or four-cell Li-ion battery and provide high-power and 5-V and/or 3.3-V standby regulation for all the downstream circuitry in a notebook computer system. High-current, 100-mA, 5-V or 3.3-V on-board linear regulators have glitch-free switch over function to SMPS and can be kept alive independently during standby state. The pseudo-constant frequency adaptive on-time control scheme supports full range of current mode operation including simplified loop compensation, ceramic output capacitors as well as seamless transition to reduced frequency operation at light-load condition. Optional D-CAP mode operation optimized for SP-CAP or POSCAP output capacitors allows further reduction of external compensation parts. Dynamic UVP supports VIN line sag without latch off by hitting 5-V UVP. No negative voltage appears at output voltage node during UVLO, UVP, and OCP, OTP or loss of VIN.

The TPS51120 32-pin QFN package is specified from –40°C to 85°C ambient temperature.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS51120VQFN (32)5.00 mm × 5.00 mm
