TPS54061 - 具有低静态电流的 4.7V 至 60V 输入、200mA 同步降压转换器

TPS54061是TI德州仪器公司的一款转换器（集成开关）产品，TPS54061是具有低静态电流的 4.7V 至 60V 输入、200mA 同步降压转换器，本站介绍了TPS54061的封装应用图解、特点和优点、功能等，并给出了与TPS54061相关的TI元器件型号供参考。

TPS54061 - 具有低静态电流的 4.7V 至 60V 输入、200mA 同步降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Integrated High-Side and Low-Side MOSFET
Diode Emulation for Improved Light Load Efficiency
Peak Current Mode Control
90-µA Operating Quiescent Current
1.4-µA Shutdown Supply Current
50-kHz to 1100-kHz Adjustable Switching Frequency
Synchronizes to External Clock
Internal Slow-Start
0.8 V ±1% Voltage Reference
Stable With Ceramic Output Capacitors or Low-Cost Aluminum Electrolytic
Cycle-by-Cycle Current Limit, Thermal, OVP and Frequency Foldback Protection
VSON-8 Package, 3 mm × 3 mm With Thermal Pad
–40°C to 150°C Operating Junction Temperature

产品应用

4 to 20-mA Current-Loop Powered Sensors
Low Power Standby or Bias Voltage Supplies
Industrial Process Control, Metering, and Security Systems
High Efficiency Replacement for High Voltage Linear Regulators

产品说明

The TPS54061 device is a 60-V, 200-mA, synchronous step-down DC-DC converter with integrated high-side and low-side MOSFETs. Current mode control provides simple external compensation and flexible component selection. The non-switching supply current is 90 µA. Using the enable pin, shutdown supply current is reduced to 1.4 µA.

To increase light load efficiency the low-side MOSFET emulates a diode when the inductor current reaches zero.

Under voltage lockout is internally set at 4.5 V, but can be increased using two resistors on the enable pin. The output voltage startup ramp is controlled by the internal slow-start time.

The adjustable switching frequency range allows efficiency and external component size to be optimized. Frequency foldback and thermal shutdown protects the part during an overload condition.

The TPS54061 enables small designs by integrating the MOSFETs, boot recharge diode, and minimizing the IC footprint with a small 3.00 mm x 3.00 mm thermally enhanced VSON package

The TPS54061 is supported in the WEBENCH™ Designer at www.ti.com.

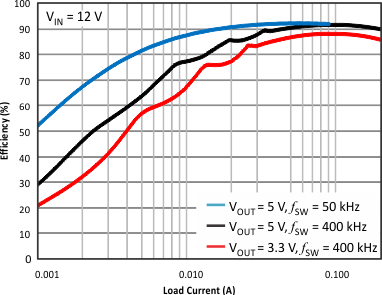

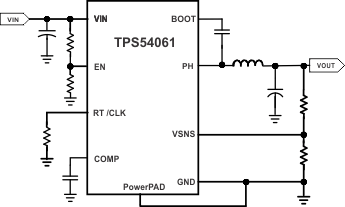

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS54061	VSON (8)	3.00 mm x 3.00 mm
