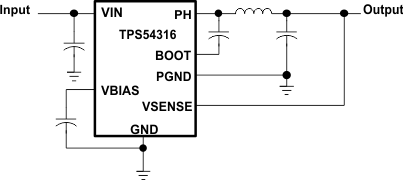

TPS54311 - 产品图解：
TPS54311-具有 0.9V 输出的低输入电压 3A 同步降压转换器
TPS54311-转换器（集成开关）-DC/DC开关稳压器-电源管理
TPS54311-TPS5431x 3-V to 6-V Input, 3-A Output Synchronous Buck PWM Switcher With Integrated FETs (SWIFT?)
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS54311介绍

TPS54311 - 具有 0.9V 输出的低输入电压 3A 同步降压转换器

TPS54311是TI德州仪器公司的一款转换器（集成开关）产品，TPS54311是具有 0.9V 输出的低输入电压 3A 同步降压转换器，本站介绍了TPS54311的封装应用图解、特点和优点、功能等，并给出了与TPS54311相关的TI元器件型号供参考。

TPS54311 - 具有 0.9V 输出的低输入电压 3A 同步降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • 60-mΩ, MOSFET Switches for High Efficiency at 3-A Continuous Output Source and Sink Current
  • 0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V Fixed Output Voltage Devices With 1.0% Initial Accuracy
  • Internally Compensated for Low Parts Count
  • Fast Transient Response
  • Wide PWM Frequency − Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHz
  • Load Protected by Peak Current Limit and Thermal Shutdown
  • Integrated Solution Reduces Board Area and Total Cost
产品应用
  • Low-Voltage, High-Density Systems With Power Distributed at 5 V or 3.3 V
  • Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors
  • Broadband, Networking and Optical Communications Infrastructure
  • Portable Computing/Notebook PCs
产品说明

As members of the SWIFT™ family of DC - DC regulators, the TPS54311, TPS54312, TPS54313, TPS54314, TPS54315 and TPS54316 low-input-voltage high-outputcurrent synchronous-buck PWM converters integrate all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a powergood output useful for processor/logic reset, fault signaling, and supply sequencing.

The TPS54311, TPS54312, TPS54313, TPS54314, TPS54315 and TPS54316 devices are available in a thermally enhanced 20-pin HTSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

产品器件信息
PART NUMBERPACKAGEOUTPUT VOLTAGE
TPS54311HTSSOP (20)0.9 V
TPS543121.2 V
TPS543131.5 V
TPS543141.8 V
TPS543152.5 V
TPS543163.3 V
