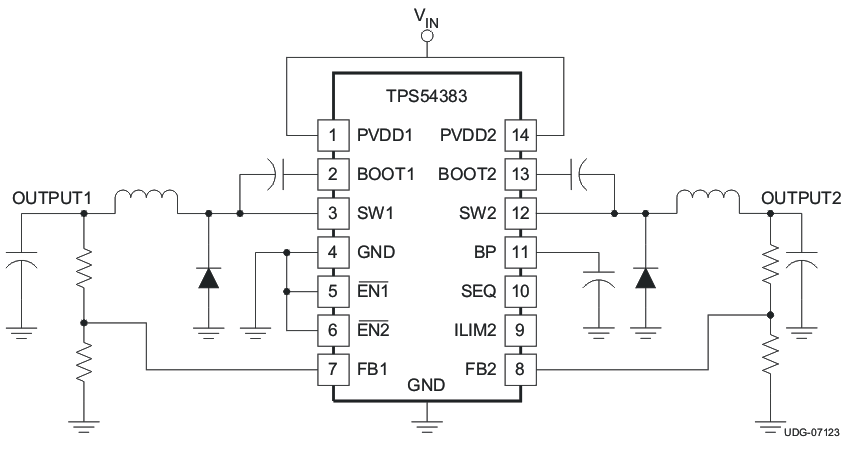

TPS54386 - 产品图解：
TPS54386-具有内部补偿的 4.5V 至 28V 输入、双路 3A 输出、600kHz 降压转换器
TPS54386-转换器（集成开关）-DC/DC开关稳压器-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS54386介绍

TPS54386 - 具有内部补偿的 4.5V 至 28V 输入、双路 3A 输出、600kHz 降压转换器

TPS54386是TI德州仪器公司的一款转换器（集成开关）产品，TPS54386是具有内部补偿的 4.5V 至 28V 输入、双路 3A 输出、600kHz 降压转换器，本站介绍了TPS54386的封装应用图解、特点和优点、功能等，并给出了与TPS54386相关的TI元器件型号供参考。

TPS54386 - 具有内部补偿的 4.5V 至 28V 输入、双路 3A 输出、600kHz 降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • 4.5-V to 28-V Input Range
  • Output Voltage Range 0.8 V to 90% of Input Voltage
  • Output Current Up to 3 A
  • Two Fixed Switching Frequency Versions:
    • TPS54383: 300 kHz
    • TPS54386: 600 kHz
  • Three Selectable Levels of Overcurrent Protection (Output 2)
  • 0.8-V 1.5% Voltage Reference
  • 2.1-ms Internal Soft-Start
  • Dual PWM Outputs 180° Out-of-Phase
  • Ratiometric or Sequential Startup Modes Selectable by a Single Pin
  • 85-mΩ Internal High-Side MOSFETs
  • Current Mode Control
  • Internal Compensation (See Page 16)
  • Pulse-by-Pulse Overcurrent Protection
  • Thermal Shutdown Protection at +148°C
  • 14-Pin PowerPAD™ HTSSOP package
2 Applications
  • Set Top Box
  • Digital TV
  • Power for DSP
  • Consumer Electronics
3 Description

The TPS54383 and TPS54386 are dual output, non-synchronous buck converters capable of supporting 3-A output applications that operate from a 4.5-V to 28-V input supply voltage, and require output voltages between 0.8 V and 90% of the input voltage.

With an internally-determined operating frequency, soft-start time, and control loop compensation, these converters provide many features with a minimum of external components. Channel 1 overcurrent protection is set at 4.5 A, while Channel 2 overcurrent protection level is selected by connecting a pin to ground, to BP, or left floating. The setting levels are used to allow for scaling of external components for applications that do not need the full load capability of both outputs.

The outputs may be enabled independently, or may be configured to allow either ratio-metric or sequential startup sequencing. Additionally, the two outputs may be powered from different sources.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS54383HTSSOP (14)4.40 mm × 5.00 mm
TPS54386
