TPS55330 - 集成式 5A 24V 宽输入范围升压/SEPIC/反激式 DC/DC 稳压器

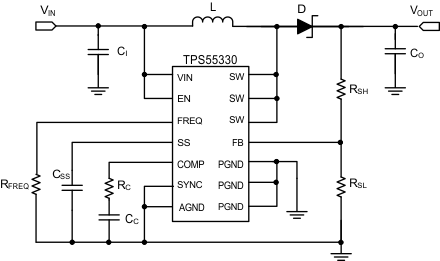

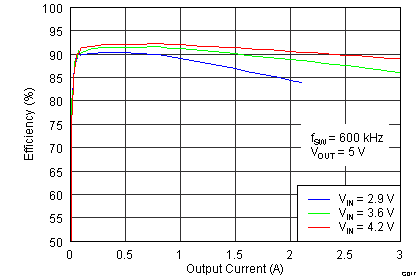

TPS55330是TI德州仪器公司的一款转换器（集成开关）产品，TPS55330是集成式 5A 24V 宽输入范围升压/SEPIC/反激式 DC/DC 稳压器，本站介绍了TPS55330的封装应用图解、特点和优点、功能等，并给出了与TPS55330相关的TI元器件型号供参考。

TPS55330 - 集成式 5A 24V 宽输入范围升压/SEPIC/反激式 DC/DC 稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Internal 5-A, 24-V Low-Side MOSFET Switch
2.9-V to 16-V Input Voltage Range
±0.7% Reference Voltage
0.5-mA Operating Quiescent Current
2.7-µA Shutdown Supply Current
Fixed-Frequency-Current-Mode PWM Control
Frequency Adjustable From 100 kHz to 1.2 MHz
Synchronization Capability to External Clock
Adjustable Soft-Start Time
Pulse-Skipping for Higher Efficiency at Light Loads
Cycle-by-Cycle Current Limit, Thermal Shutdown, and UVLO Protection
QFN-16 (3 mm × 3 mm) With PowerPAD™
Wide –40°C to +150°C Operating TJ Range

产品应用

3.3-V, 5-V, 12-V Power Conversion
Boost, SEPIC, and Flyback Topologies
Thunderbolt Port, Power Docking for Tablets and Portable PCs
Industrial Power Systems
ADSL Modems

产品说明

The TPS55330 is a monolithic nonsynchronous switching regulator with integrated 5-A, 24-V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC, and isolated flyback. The device has a wide input voltage range to support applications with input voltage from multicell batteries or regulated 3.3-V, 5-V, and 12-V power rails.

The TPS55330 regulates the output voltage with current mode PWM (pulse width modulation) control, and has an internal oscillator. The switching frequency of PWM is set by either an external resistor or by synchronizing to an external clock signal. The user can program the switching frequency from 100 kHz to 1.2 MHz.

The device features a programmable soft-start function to limit inrush current during start up and has other built-in protection features including cycle-by-cycle overcurrent limit and thermal shutdown.

The TPS55330 is available in a small 3-mm × 3-mm 16-pin QFN with PowerPAD for enhanced thermal performance.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS55330	WQFN (16)	3.00 mm × 3.00 mm
