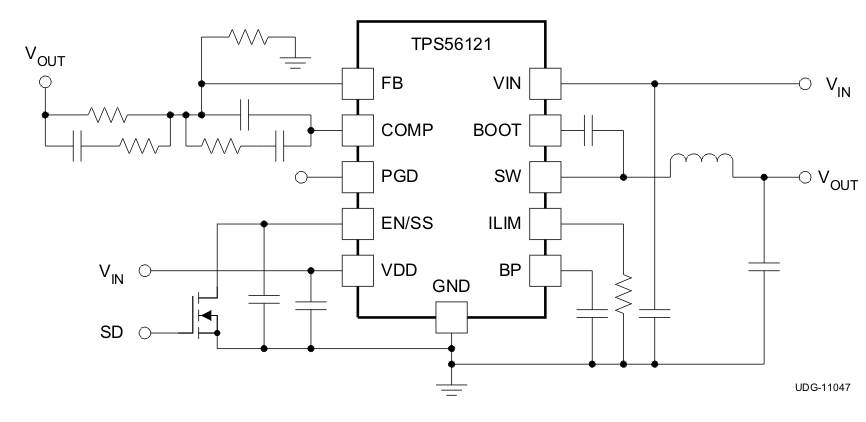

TPS56121 - 4.5V 至 14V 输入、15A 同步降压 SWIFT? 转换器

TPS56121是TI德州仪器公司的一款转换器（集成开关）产品，TPS56121是4.5V 至 14V 输入、15A 同步降压 SWIFT? 转换器，本站介绍了TPS56121的封装应用图解、特点和优点、功能等，并给出了与TPS56121相关的TI元器件型号供参考。

TPS56121 - 4.5V 至 14V 输入、15A 同步降压 SWIFT? 转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

4.5-V to 14-V Input Voltage Range
Incorporates Power Block Technology
Up to 15-A Output Current
Fixed-Frequency Options of 300 kHz, 500 kHz, and 1 MHz
High-Side and Low-Side MOSFET RDS(on) Sensing
Programmable Soft-Start
600-mV Reference Voltage With 1% Accuracy
Voltage Mode Control with Feed-Forward
Supports Prebiased Output
Thermal Shutdown
22-Pin 5-mm x 6-mm PQFN PowerPAD™ Package

产品应用

Point-of-Load (POL) Power Modules
High-Density DC-DC Converters for Telecom and Networking Applications

产品说明

The TPS56121 device is a high-efficiency and high-current synchronous buck converter designed to operate from a supply of 4.5 V to 14 V. The device can produce an output voltage as low as 0.6 V at loads up to 15 A. Integrated NexFET™ Power MOSFETs provide a small footprint and ease of use.

The device implements a voltage-mode control with voltage feed-forward compensation that responds instantly to input voltage change.

The TPS56121 is available in a thermally enhanced 22-pin PQFN (DQP) PowerPAD package.

The device offers design flexibility with a variety of user programmable functions, including soft-start, overcurrent protection (OCP) levels, and loop compensation. OCP levels are programmed by a single external resistor connected from the ILIM pin to the circuit ground. During the initial power-on sequence, the device enters a calibration cycle, measures the voltage at the ILIM pin, and sets an internal OCP voltage level. During operation, the programmed OCP voltage level is compared to the voltage drop across the low-side FET when it is on to determine whether there is an overcurrent condition and then enters a shutdown/restart cycle until the fault is removed.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS56121	LSON-CLIP (22)	6.00 mm × 5.00 mm
