TI产品 - TPS60141介绍

TPS60141 - 具有电池电源状态良好指示的稳压 5V 三路电压充电泵

TPS60141是TI德州仪器公司的一款电荷泵（无感应器）产品，TPS60141是具有电池电源状态良好指示的稳压 5V 三路电压充电泵，本站介绍了TPS60141的封装应用图解、特点和优点、功能等，并给出了与TPS60141相关的TI元器件型号供参考。

TPS60141 - 具有电池电源状态良好指示的稳压 5V 三路电压充电泵 - 电荷泵（无感应器） - DC/DC开关稳压器 - 德州仪器

产品特性
  • Regulated 5 V ±4% Output Voltage
  • Up to 100-mA Output Current
  • 1.8-V to 3.6-V Input Voltage Range
  • 65-µA Quiescent Supply Current
  • 0.05-µA Shutdown Current, Battery Is Isolated From Load in Shutdown
  • Integrated Low-Battery or Power-Good Indicator
  • Low-Output Voltage Ripple Over Complete Output Current Range
  • Easy-to-Design With Low-EMI Power Supply Because No Inductors Are Required
  • Evaluation Module Available (TPS60140EVM-144)
  • Available in a 6.5-mm × 4.4-mm 20-Pin HTSSOP Package
产品应用
  • Replacement of DC-DC Converters With Inductors in Battery-Powered Applications:
    • Two Battery Cells to 5-V Conversions
    • Portable Instruments
    • Miniature Equipment
    • Backup-Battery Boost Converters
    • Medical Instruments
    • 5-V Smart Card Supplies
产品说明

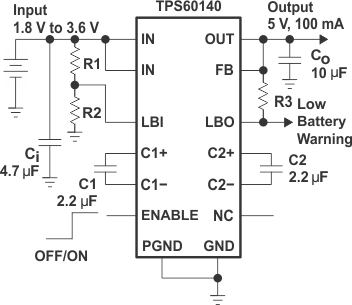

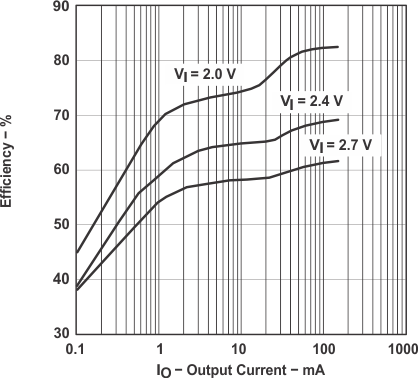

The TPS6014x step-up, regulated charge pumps generate a 5-V ±4% output voltage from a 1.8-V to 3.6-V input voltage range. The devices are typically powered by two alkaline, NiCd, or NiMH battery cells and provide an output current of minimum 100 mA from a 2-V input. Only four external capacitors are needed to build a complete voltage tripler charge pump.

The devices regulate the output by using the pulse-skip topology. The controller is optimized for lowest output voltage ripple over the complete output current range. The output peak current and therefore the output voltage ripple are drastically reduced compared to a conventional pulse-skip topology by regulating the charge pump output resistance. At light loads the maximum output resistance is limited to assure a low quiescent current.

The TPS60140 includes a low-battery comparator that issues a warning if the battery voltage drops below a user-adjustable threshold voltage. The TPS60141 features a power-good output that goes active when the output voltage reaches 90% of its nominal value.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS6014x HTSSOP (20)6.50 mm × 4.40 mm
