TI产品 - TPS61161-Q1介绍

TPS61161-Q1 - 采用 2mm x 2mm QFN 封装的具有数字和 PWM 亮度控制的汽车类白光 LED 驱动器

TPS61161-Q1是TI德州仪器公司的一款汽车类LED驱动器产品，TPS61161-Q1是采用 2mm x 2mm QFN 封装的具有数字和 PWM 亮度控制的汽车类白光 LED 驱动器，本站介绍了TPS61161-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS61161-Q1相关的TI元器件型号供参考。

TPS61161-Q1 - 采用 2mm x 2mm QFN 封装的具有数字和 PWM 亮度控制的汽车类白光 LED 驱动器 - 汽车类LED驱动器 - LED驱动器 - 德州仪器

产品特性
  • Qualified for Automotive Applications
  • 2.7-V to 18-V Input Voltage Range
  • 38-V Open LED Protection for 10 LEDs
  • 200-mV Reference Voltage With ±2% Accuracy
  • Flexible Digital and PWM Brightness Control
  • Built-In Soft Start
  • Up to 90% Efficiency
  • 2-mm × 2-mm × 0.8-mm 6-pin QFN (DRV) Package With Thermal Pad
产品应用
  • Automotive Cluster Backlighting
  • High-Brightness LED Lighting
  • White LED Backlighting Media Form Factor Displays
产品说明

With a 40-V rated integrated switch FET, the TPS61161-Q1 is a boost converter that drives up to 10 LEDs in series. The boost converter runs at 600-kHz fixed switching frequency to reduce output ripple, improve conversion efficiency, and allow for the use of small external components.

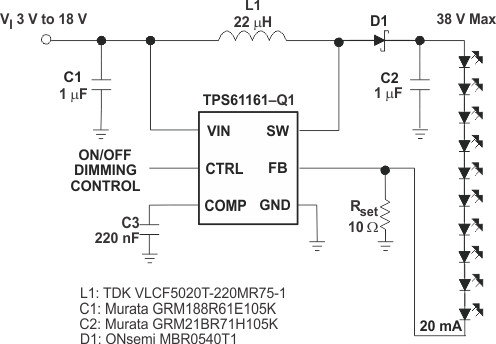

The default white LED current is set with the external sensor resistor Rset, and the feedback voltage is regulated to 200 mV, as shown in the typical application. During the operation, the LED current can be controlled using the 1-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse width modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61161-Q1 does not burst the LED current; therefore, it does not generate audible noises on the output capacitor. For maximum protection, the device features integrated open LED protection that disables the TPS61161-Q1 to prevent the output from exceeding the absolute maximum ratings during open LED conditions.

The TPS61161 is available in a space-saving, 2-mm × 2-mm QFN (DRV) package with thermal pad.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS61161-Q1SON (6)2.00 mm × 2.00 mm
