TPS61175是TI公司的一款转换器(集成开关)产品,TPS61175是具有软启动和可编程开关频率的 3A 高压升压转换器,本页介绍了TPS61175的产品说明、应用、特性等,并给出了与TPS61175相关的TI元器件型号供参考。
TPS61175 - 具有软启动和可编程开关频率的 3A 高压升压转换器 - 转换器(集成开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)
- 2.9-V to 18-V Input Voltage Range
- 3-A, 40-V Internal Switch
- High-Efficiency Power Conversion: Up to 93%
- Frequency Set by External Resistor: 200 kHz to 2.2 MHz
- Synchronous External Switching Frequency
- User-Defined Soft-Start into Full Load
- Skip-Switching Cycle for Output Regulation at Light Load
- 14-Pin HTSSOP Package With PowerPad™
- 5-V to 12-V, 24-V Power Conversion
- Supports SEPIC and Flyback Topologies
- ADSL Modems
- TV Tuners

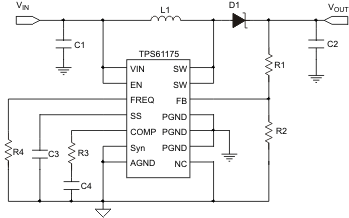

The TPS61175 device is a monolithic switching regulator with integrated 3-A, 40-V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC, and flyback. The device has a wide input voltage range to support application with input voltage from multicell batteries or regulated 5-V, 12-V power rails.
The TPS61175 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is set by either an external resistor or an external clock signal. The user can program the switching frequency from 200 kHz to 2.2 MHz.
The device features a programmable soft-start function to limit inrush current during start-up, and has other built-in protection features, such as pulse-by-pulse overcurrent limit and thermal shutdown. The TPS61175 is available in 14-pin HTSSOP package with PowerPad.
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
TPS61175 | HTSSOP (14) | 5.00 mm x 4.40 mm |
