TPS62050 - 采用 MSOP-10 封装的可调节 800mA 输出 10V 输入的 95% 效率步降转换器

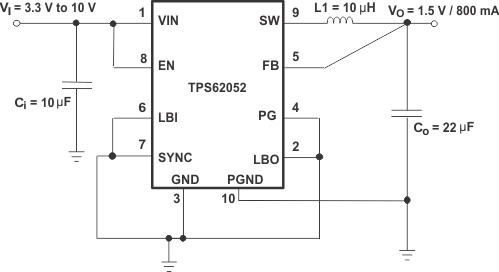

TPS62050是TI德州仪器公司的一款转换器（集成开关）产品，TPS62050是采用 MSOP-10 封装的可调节 800mA 输出 10V 输入的 95% 效率步降转换器，本站介绍了TPS62050的封装应用图解、特点和优点、功能等，并给出了与TPS62050相关的TI元器件型号供参考。

TPS62050 - 采用 MSOP-10 封装的可调节 800mA 输出 10V 输入的 95% 效率步降转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
12-µA Quiescent Current (Typical)
2.7-V to 10-V Operating Input Voltage Range
Adjustable Output Voltage Range: 0.7 V to 6 V
Fixed Output Voltage Options Available With 1.5 V, 1.8 V, and 3.3 V
Synchronizable to External Clock: Up to 1.2 MHz
High-Efficiency Over a Wide Load Current Range in Power-Save Mode
100% Maximum Duty Cycle for Lowest Dropout
Low-Noise Operation in Forced Fixed- Frequency PWM Operation Mode
Internal Softstart
Overtemperature and Overcurrent Protected
Available in 10-Pin Micro-Small Outline Package MSOP

产品应用

Cellular Phones
Organizers, PDAs, and Handheld PCs
Low-Power DSP Supplies
Digital Cameras and Hard Disks

产品说明

The TPS6205x devices are a family of high-efficiency synchronous step-down DC-DC converters that are ideally suited for systems powered from a 1- or 2-cell Li-Ion battery or from a 3- to 5-cell NiCd, NiMH, or alkaline battery.

The TPS6205x devices are synchronous pulse width modulation (PWM) converters with integrated N- and P-channel power MOSFET switches. Synchronous rectification increases efficiency and reduces external component count. To achieve highest efficiency over a wide load current range, the converter enters a power-saving pulse frequency modulation (PFM) mode at light load currents. Operating frequency is typically 850 kHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 600 kHz to 1.2 MHz. For low noise operation, the converter can be programmed into forced-fixed frequency in PWM mode. In shutdown mode, the current consumption is reduced to less than 2 µA. The TPS6205x devices are available in the 10-pin (DGS) micro-small outline package (MSOP) and operates over a free air temperature range of –40°C to 85°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS62050	VSSOP (10)	3.00 mm × 3.00 mm
TPS62051
TPS62052
TPS62054
TPS62056
