TPS62132 - 采用 3x3 QFN 封装的 3-17V 3A 降压转换器

TPS62132是TI德州仪器公司的一款转换器（集成开关）产品，TPS62132是采用 3x3 QFN 封装的 3-17V 3A 降压转换器，本站介绍了TPS62132的封装应用图解、特点和优点、功能等，并给出了与TPS62132相关的TI元器件型号供参考。

TPS62132 - 采用 3x3 QFN 封装的 3-17V 3A 降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

DCS-Control™ Topology
Input Voltage Range: 3 to 17V
Up to 3A Output Current
Adjustable Output Voltage from 0.9 to 6V
Pin-Selectable Output Voltage (nominal, + 5%)
Programmable Soft Start and Tracking
Seamless Power Save Mode Transition
Quiescent Current of 17µA (typ.)
Selectable Operating Frequency
Power Good Output
100% Duty Cycle Mode
Short Circuit Protection
Over Temperature Protection
Available in a 3 × 3 mm, QFN-16 Package

产品应用

Standard 12V Rail Supplies
POL Supply from Single or Multiple Li-Ion Battery
Solid-State Disk Drives
Embedded Systems
LDO replacement
Mobile PCs, Tablet, Modems, Cameras

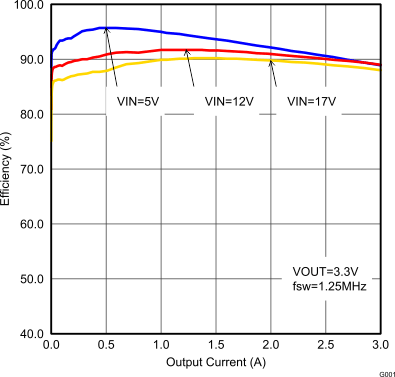

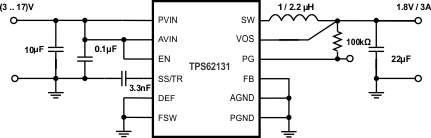

产品说明

The TPS6213X family is an easy to use synchronous step down DC-DC converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control™ topology.

With their wide operating input voltage range of 3V to 17V, the devices are ideally suited for systems powered from either a Li-Ion or other batteries as well as from 12V intermediate power rails. It supports up to 3A continuous output current at output voltages between 0.9V and 6V (with 100% duty cycle mode). The output voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the Enable and open-drain Power Good pins.

In Power Save Mode, the devices draw quiescent current of about 17μA from VIN. Power Save Mode, entered automatically and seamlessly if load is small, maintains high efficiency over the entire load range. In Shutdown Mode, the device is turned off and shutdown current consumption is less than 2μA.

The device, available in adjustable and fixed output voltage versions, is packaged in a 16-pin VQFN package measuring 3 × 3 mm (RGT).

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS6213x	VQFN (16)	3.00 mm × 3.00 mm
