TPS62163 - 采用 2x2 QFN 封装的 3-17V 1A 降压转换器

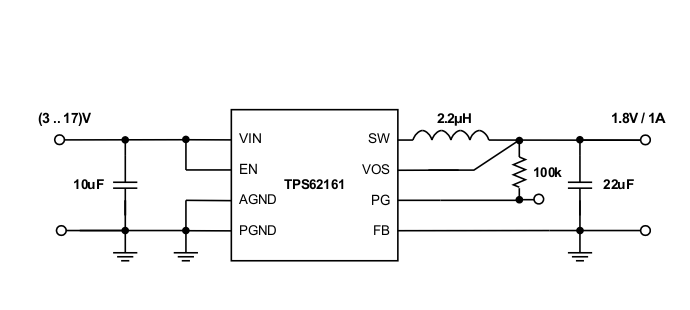

TPS62163是TI德州仪器公司的一款转换器（集成开关）产品，TPS62163是采用 2x2 QFN 封装的 3-17V 1A 降压转换器，本站介绍了TPS62163的封装应用图解、特点和优点、功能等，并给出了与TPS62163相关的TI元器件型号供参考。

TPS62163 - 采用 2x2 QFN 封装的 3-17V 1A 降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

DCS-Control™ Topology
Input Voltage Range from 3 V to 17 V
Up to 1-A Output Current
Adjustable Output Voltage From 0.9 V to 6 V
Fixed Output Voltage Versions
Seamless Power Save Mode Transition
Typically 17-µA Quiescent Current
Power Good Output
100% Duty Cycle Mode
Short Circuit Protection
Over Temperature Protection
Pin to Pin Compatible With TPS62170 and TPS62125
Available in 3.00 mm x 3.00 mm 8-Pin VSSOP and 2.00 mm × 2.00 mm 8-Pin WSON Packages

产品应用

Standard 12-V Rail Supplies
POL Supply From Single or Multiple Li-Ion Battery
LDO Replacement
Embedded Systems
Digital Still Camera, Video
Mobile PCs, Tablet-PCs, Modems

产品说明

The TPS6216x device family are easy to use synchronous step-down DC/DC converters optimized for applications with high power density. A high switching frequency of typically 2.25 MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by utilization of the DCS-Control™ topology.

With its wide operating input voltage range of 3 V to 17 V, the devices are ideally suited for systems powered from either a Li-Ion or other battery as well as from 12-V intermediate power rails. It supports up to 1-A continuous output current at output voltages between 0.9 V and 6 V (with 100% duty cycle mode).

Power sequencing is also possible by configuring the enable and open-drain power good pins.

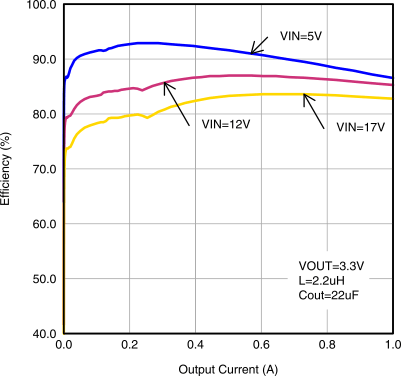

In power save mode, the devices show quiescent current of about 17 μA from VIN. Power save mode, entered automatically and seamlessly if the load is small, maintains high efficiency over the entire load range. In shutdown mode, the device is turned off and shutdown current consumption is less than 2 μA.

The TPS6216x devices operate over a free air temperature range of –40°C to 85°C. They are available in adjustable and fixed output voltage versions. The devices are packaged in an 8-pin WSON package measuring 2.00 mm × 2.00 mm (DSG) or 8-pin VSSOP package measuring 3.00 mm x 3.00 mm (DGK).

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS6216x	WSON (8)	2.00 mm x 2.00 mm
TPS62160	VSSOP (8)	3.00 mm x 3.00 mm
