TPS62403 - Dual Channel Step-Down Converter with 1-Pin EasyScale Interface

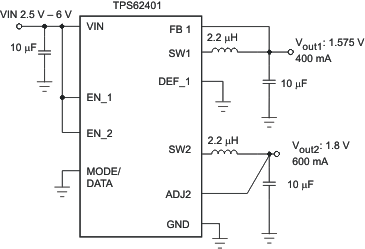

TPS62403是TI德州仪器公司的一款转换器（集成开关）产品，TPS62403是Dual Channel Step-Down Converter with 1-Pin EasyScale Interface，本站介绍了TPS62403的封装应用图解、特点和优点、功能等，并给出了与TPS62403相关的TI元器件型号供参考。

TPS62403 - Dual Channel Step-Down Converter with 1-Pin EasyScale Interface - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

High Efficiency—Up to 95%
VIN Range From 2.5 V to 6 V
2.25-MHz Fixed Frequency Operation
Output Current of 400 mA and 600 mA
Adjustable Output Voltage From 0.6V to VIN
Pin-Selectable Output Voltage Supports Simple Dynamic Voltage Scaling
EasyScale™ Optional One-Pin Serial Interface
Power Save Mode at Light Load Currents
180° Out-of-Phase Operation
Output Voltage Accuracy in PWM Mode ±1%
Typical 32-μA Quiescent Current for Both Converters
100% Duty Cycle for Lowest Dropout
Available in a 10-Pin VSON (3 mm × 3 mm)

产品应用

Cell Phones, Smart Phones
PDAs, Pocket PCs
OMAP™ and Low-Power DSP Supply
Portable Media Players
Digital Radios
Digital Cameras

产品说明

The TPS6240x family of devices are synchronous dual step-down DC-DC converters optimized for battery-powered portable applications. The devices provide two independent output voltage rails powered by 1-cell Li-Ion or 3-cell NiMH/NiCD batteries. The devices are also suitable to operate from a standard 3.3-V or 5-V voltage rail.

With an input voltage range from 2.5 V to 6 V, the TPS6240x is ideal to power portable applications like smart phones, PDAs, and other portable equipment.

With the EasyScale serial interface the output voltages can be modified during operation. The fixed output voltage versions TPS62401, TPS62402, TPS62403, and TPS62404 support one-pin controlled simple Dynamic Voltage Scaling for low-power processors.

The TPS6240x operates at a 2.25-MHz fixed switching frequency and enters the power save mode operation at light load currents to maintain high efficiency over the entire load current range. For low noise applications the devices can be forced into fixed frequency PWM mode by pulling the MODE/DATA pin high. In the shutdown mode, the current consumption is reduced to 1.2 μA, typical. The devices allow the use of small inductors and capacitors to achieve a small solution size.

The TPS6240x is available in a 10-pin leadless package (3-mm × 3-mm VSON)

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS6240x	VSON (10)	3.00 mm x 3.00 mm
