当前位置:TI公司 > > TI芯片 >> TPS62590-Q1
TPS62590-Q1技术文档下载:
TPS62590-Q1技术文档产品手册下载

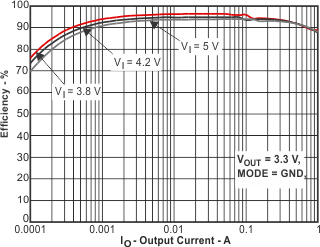

TPS62590-Q1 - 产品图解:
TPS62590-Q1-采用 2 x 2 SON 封装的汽车类 2.25MHz 1A 降压转换器
TPS62590-Q1-转换器(集成开关)-DC/DC开关稳压器-电源管理
TPS62590-Q1-TPS62590-Q1 Automotive 2.25-MHz 1-A Step-Down Converter In 2-mm × 2-mm SON Package
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS62590-Q1介绍
TPS62590-Q1 - 采用 2 x 2 SON 封装的汽车类 2.25MHz 1A 降压转换器

TPS62590-Q1是TI公司的一款转换器(集成开关)产品,TPS62590-Q1是采用 2 x 2 SON 封装的汽车类 2.25MHz 1A 降压转换器,本页介绍了TPS62590-Q1的产品说明、应用、特性等,并给出了与TPS62590-Q1相关的TI元器件型号供参考。

TPS62590-Q1 - 采用 2 x 2 SON 封装的汽车类 2.25MHz 1A 降压转换器 - 转换器(集成开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Qualified for Automotive Applications
  • Output Current up to 1000 mA
  • Input Voltage Range from 2.5 V to 6 V
  • High Efficiency Step Down Converter
  • Output Voltage Accuracy in PWM mode ±2.5%
  • Typical 15-μA Quiescent Current
  • 2.25 MHz Fixed Frequency Operation
  • Power Save Mode at Light Load Currents
  • 100% Duty Cycle for Lowest Dropout
产品应用
  • Automotive Infotainment and Cluster
    • Head Unit
    • Navigation
    • Display
  • Advanced Driver Assistance System (ADAS)
    • Front Cameras
    • Blind Spot Monitoring
    • Lane Departure Warning
    • Park Assist
产品说明

The TPS62590-Q1 device is a high-efficiency synchronous step-down converter, optimized for space constrained applications and very low quiescent current requirements. It provides up to 1000-mA output current from preregulated low voltage rails and consumes 15 uA (typical) in power-save mode.

With an input voltage range of 2.5 V to 6 V and an output voltage accuracy of 2.5%, the device is targeted to power a large variety of automotive applications.

The TPS62590-Q1 family operates at a 2.25-MHz fixed switching frequency and enters a power-save mode at light load currents to maintain a high efficiency over the entire load current range.

The power-save mode is optimized for low output-voltage ripple. For low-noise applications, the device can be forced into fixed-frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 µA. The TPS62590-Q1 allows the use of small inductors and capacitors to achieve a small solution size.

The TPS62590-Q1 is available in a 2-mm × 2-mm 6-pin SON package with a thermal pad for improved thermal performance.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS62590-Q1SON (6)2.00 mm × 2.00
