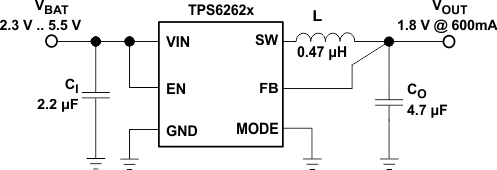

TPS62624 - 产品图解：
TPS62624-采用芯片级封装的 600mA、6MHz 高效降压转换器
TPS62624-转换器（集成开关）-DC/DC开关稳压器-电源管理
TPS62624-TPS6262x 600-mA, 6-MHz High-Efficiency Step-Down Converter In Chip Scale Packaging
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS62624介绍

TPS62624 - 采用芯片级封装的 600mA、6MHz 高效降压转换器

TPS62624是TI德州仪器公司的一款转换器（集成开关）产品，TPS62624是采用芯片级封装的 600mA、6MHz 高效降压转换器，本站介绍了TPS62624的封装应用图解、特点和优点、功能等，并给出了与TPS62624相关的TI元器件型号供参考。

TPS62624 - 采用芯片级封装的 600mA、6MHz 高效降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • Wide Input Voltage Range from 2.3 V to 5.5 V
  • 6 MHz Regulated Frequency Operation
  • 90% Efficiency at 6 MHz Operation
  • 31 μA Quiescent Current
  • Best in Class Load and Line Transient
  • ±2% Total DC Voltage Accuracy
  • Automatic PFM/PWM Mode Switching
  • Low Ripple Light-Load PFM Mode
  • Internal Soft Start, 120-μs Start-Up Time
  • Integrated Active Power-Down Sequencing (TPS62624 only)
  • Current Overload and Thermal Shutdown Protection
  • Three Surface-Mount External Components Required (One MLCC Inductor, Two Ceramic Capacitors)
  • Complete Sub 1-mm Component Profile Solution
  • Total Solution Size < 12 mm2
  • Available in a 6-Pin NanoFree™ (WCSP) Regular and Ultra-Thin Packaging
产品应用
  • Mobile Phones, Smartphones
  • WLAN, GPS and Bluetooth™ Applications
  • DTV Tuner Applications
  • DC/DC Micro Modules spacer
产品说明

The TPS6262x device family provides high-frequency synchronous step-down DC/DC converters optimized for battery-powered portable applications. Intended for low-power applications, the TPS6262x devices support up to 600 mA load current, and allow the use of low cost chip inductor and capacitors.

With a wide input voltage range of 2.3 V to 5.5 V, the devices support applications powered by Li-Ion batteries with extended voltage range. Different fixed voltage output versions are available from 1.2 V to 2.3 V.

The TPS6262x devices operate at a regulated 6-MHz switching frequency and enter the power-save mode operation at light load currents to maintain high efficiency over the entire load current range.

The pulse frequency modulation (PFM) mode extends the battery life by reducing the quiescent current to 31 μA (typical) during light load and standby operation. For noise-sensitive applications, the device can be forced into fixed frequency pulse width modulation (PWM) mode by pulling the MODE pin high.

The TPS6262x devices operate over a free air temperature range of –40°C to 85°C. They are available in a 6-pin chip-scale package (WCSP).

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS6262xDSBGA (6)1.30 mm × 0.96 mm
