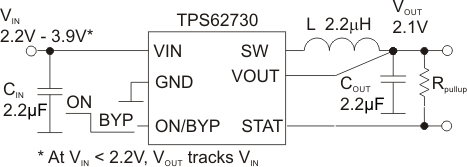

TPS62732 - 产品图解：
TPS62732-用于超低功耗线应用的具有旁路模式的降压转换器
TPS62732-转换器（集成开关）-DC/DC开关稳压器-电源管理
TPS62732-用于超低功耗线应用的具有旁路模式的降压转换器 (Rev. C)
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS62732介绍

TPS62732 - 用于超低功耗无线应用的具有旁路模式的降压转换器

TPS62732是TI德州仪器公司的一款转换器（集成开关）产品，TPS62732是用于超低功耗无线应用的具有旁路模式的降压转换器，本站介绍了TPS62732的封装应用图解、特点和优点、功能等，并给出了与TPS62732相关的TI元器件型号供参考。

TPS62732 - 用于超低功耗无线应用的具有旁路模式的降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性
  • Input Voltage Range VIN From 1.9 V to 3.9 V
  • Typ. 30-nA Ultra Low-Power Bypass Mode
  • Typ. 25-μA DC-DC Quiescent Current
  • Internal Feedback Divider Disconnect
  • Typical 2.1-Ω Bypass Switch Between VIN and VOUT
  • Automatic Transition from DC-DC to Bypass Mode
  • Up to 3-MHz Switch Frequency
  • Up to 95% DC-DC Efficiency
  • Open-Drain Status Output STAT
  • Output Peak Current up to 100 mA
  • Fixed Output Voltages 1.9 V, 2.05 V, 2.1 V, 2.3 V
  • Small External Output Filter Components 2.2 μH and 2.2 μF
  • Optimized For Low Output Ripple Voltage
  • Small 1 × 1.5 × 0.6-mm3 USON Package
  • 12-mm2 Minimum Solution Size
产品应用
  • CC2540 Bluetooth™ Low-Energy System-On-Chip Solution
  • Low-Power Wireless Applications
  • RF4CE, Metering
产品说明

The TPS62730 is a high frequency synchronous step-down DC-DC converter optimized for ultra low-power wireless applications. The device is optimized to supply TI's Low-Power Wireless sub 1-GHz and 2.4-GHz RF transceivers and System-On-Chip (SoC) solutions. The TPS62730 reduces the current consumption drawn from the battery during TX and RX mode by a high efficient step-down voltage conversion. The device provides an output current of up to 100 mA and allows the use of tiny and low-cost chip inductors and capacitors. With an input voltage range of 1.9 V to 3.9 V, the device supports Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2, and also two cell alkaline batteries.

The TPS62730 features an Ultra Low-Power bypass mode with typical 30-nA current consumption to support sleep and low power modes of TI's CC2540 Bluetooth Low Energy and CC430 SoC solutions. In this bypass mode, the output capacitor of the DC-DC converter is connected through an integrated typical 2.1-Ω bypass switch to the battery.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS62730USON (6)1.45 mm x 1.00 mm
TPS62732
TPS62733
