TPS63002 - 采用 3x3 QFN 封装，具有 1.7A 电流开关和 5V 固定输出电压的 96% 升压降压转换器

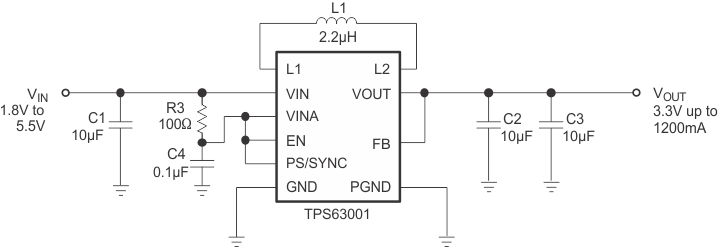

TPS63002是TI德州仪器公司的一款转换器（集成开关）产品，TPS63002是采用 3x3 QFN 封装，具有 1.7A 电流开关和 5V 固定输出电压的 96% 升压降压转换器，本站介绍了TPS63002的封装应用图解、特点和优点、功能等，并给出了与TPS63002相关的TI元器件型号供参考。

TPS63002 - 采用 3x3 QFN 封装，具有 1.7A 电流开关和 5V 固定输出电压的 96% 升压降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Input Voltage Range: 1.8 V to 5.5 V
Fixed and Adjustable Output Voltage Options from 1.2 V to 5.5 V

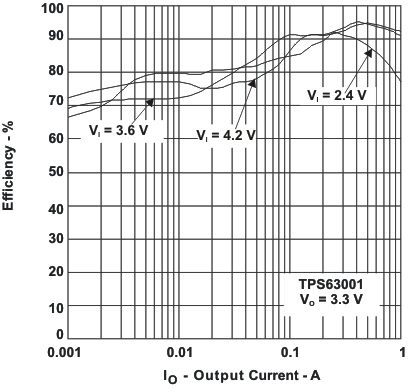

Up to 96% Efficiency
1200-mA Output Current at 3.3 V in Step-Down Mode (VIN = 3.6 V to 5.5 V)
Up to 800-mA Output Current at 3.3 V in Boost Mode (VIN > 2.4 V)
Automatic Transition Between Step-Down and Boost Mode
Device Quiescent Current less than 50 μA
Power-Save Mode for Improved Efficiency at Low Output Power
Forced Fixed Frequency Operation and Synchronization Possible
Load Disconnect During Shutdown
Overtemperature Protection
Available in a Small 3-mm × 3-mm 10-Pin VSON Package (QFN)

产品应用

All Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products
Portable Audio Players
Smart Phones
Personal Medical Products
White LEDs

产品说明

The TPS6300x devices provide a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-ion or Li-polymer battery. Output currents can go as high as 1200 mA while using a single-cell Li-ion or Li-polymer battery, and discharge it down to 2.5 V or lower. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 1800 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery.

The TPS6300x devices operate over a free air temperature range of –40°C to 85°C. The devices are packaged in a 10-pin VSON package (QFN) measuring 3 mm × 3 mm (DRC).

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS63000	VSON (10)	3.00 mm x 3.00 mm
TPS63001
TPS63002
