TPS63061 - 2.5V 至 12V 输入电压、93% 效率、2.25A 开关电流限制升压/降压转换器

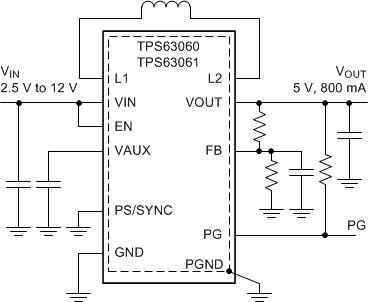

TPS63061是TI德州仪器公司的一款转换器（集成开关）产品，TPS63061是2.5V 至 12V 输入电压、93% 效率、2.25A 开关电流限制升压/降压转换器，本站介绍了TPS63061的封装应用图解、特点和优点、功能等，并给出了与TPS63061相关的TI元器件型号供参考。

TPS63061 - 2.5V 至 12V 输入电压、93% 效率、2.25A 开关电流限制升压/降压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Input Voltage Range: 2.5 V to 12 V
Efficiency: Up to 93%
Output Current at 5 V (VIN<10 V): 2 A in Buck Mode
Output Current at 5 V (VIN>4 V): 1.3 A in Boost Mode
Automatic Transition Between Step Down and Boost Mode
Typical Device Quiescent Current: < 30 μA
Fixed and Adjustable Output Voltage Options from 2.5 V to 8 V
Power-Save Mode for Improved Efficiency at Low Output Power
Forced Fixed-Frequency Operation at 2.4 MHz and Synchronization Possible
Power Good Output
Buck-Boost Overlap Control™
Load Disconnect During Shutdown
Overtemperature Protection
Overvoltage Protection

产品应用

Dual Li-Ion Application
DSCs and Camcorders
Notebook Computer
Industrial Metering Equipment
Ultra Mobile PCs and Mobile Internet Devices
Personal Medical Products
High-Power LEDs

Efficiency vs Output Current

产品说明

The TPS6306x devices provide a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery, or a one-cell or dual-cell Li-Ion or Li-polymer battery. Output currents can go as high as 2-A while using a dual-cell Li-Ion or Li-polymer battery, and discharge it down to 5 V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25 A. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery.

The devices are available in a 3 mm × 3 mm, 10-pin, WSON (DSC), PowerPAD™ package.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS63060	WSON (10)	3.00 mm × 3.00 mm
TPS63061	WSON (10)	3.00 mm × 3.00 mm
