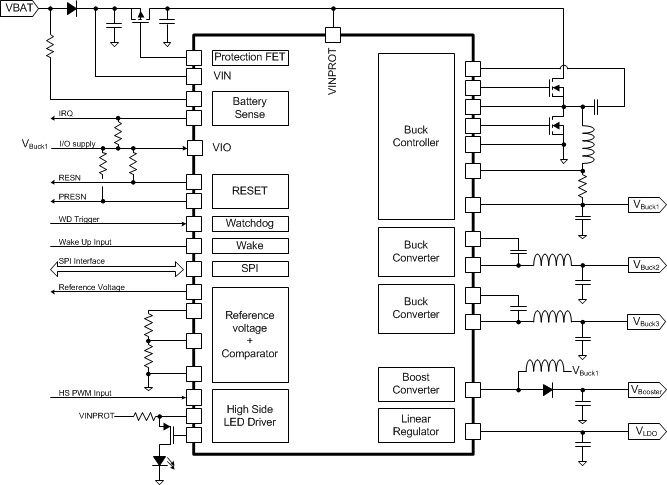

TPS65310A-Q1 - 产品图解：
TPS65310A-Q1--电源管理多通道IC(PMIC)解决方案-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - TPS65310A-Q1介绍

TPS65310A-Q1 - High Voltage Power Management IC for Automotive Safety Applications.

TPS65310A-Q1是TI德州仪器公司的一款无产品，TPS65310A-Q1是High Voltage Power Management IC for Automotive Safety Applications.，本站介绍了TPS65310A-Q1的封装应用图解、特点和优点、功能等，并给出了与TPS65310A-Q1相关的TI元器件型号供参考。

TPS65310A-Q1 - High Voltage Power Management IC for Automotive Safety Applications. - 无 - 电源管理多通道IC(PMIC)解决方案 - 德州仪器

产品特性
  • Qualified for Automotive Applications
  • AEC-Q100 Test Guidance With the Following Results:
    • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature
    • Device HBM ESD Classification Level H1B
    • Device CDM ESD Classification Level C3B
  • Input Voltage Range: 4 V to 40 V, Transients up to 60 V; 80 V When Using External P-channel Metal Oxide Semiconductor (PMOS)
  • Single Output Synchronous Buck Controller
    • Peak Gate Drive Current 0.6 A
    • 490-kHz Fixed Switching Frequency
    • Pseudo-Random Frequency-Hopping Spread Spectrum or Triangular Mode
  • Dual Synchronous Buck Converter
    • Designed for Output Currents up to 2 A
    • Out-of-Phase Switching
    • Switching Frequency: 0.98 MHz
  • Adjustable 350-mA Linear Regulator
  • Adjustable Asynchronous Boost Converter
    • 1-A Integrated Switch
    • Switching Frequency: 0.98 MHz
  • Soft-Start Feature for All Regulator Outputs
  • Independent Voltage Monitoring
  • Undervoltage (UV) Detection and Overvoltage (OV) Protection
  • Short-Circuit, Overcurrent, and Thermal Protection on Buck Controller, Gate Drive, Buck Converters, Boost Converter, and Linear Regulator Outputs
  • Serial Peripheral Interface (SPI) for Control and Diagnostic
  • Integrated Window Watchdog (WD)
  • Reference Voltage Output
  • High-Side (HS) Driver for Use With External Field Effect Transistor (FET), Light-Emitting Diode (LED) Driver
  • Input for External Temperature Sensor, Integrated Circuit (IC) Shutdown at TA < –40°C
  • Thermally Enhanced Package
    • 56-Pin QFN (RWE)
产品应用
  • Multiple Rail DC Power Distribution Systems
  • Safety-Critical Automotive Applications
    • Advanced Driver Assistance Systems
产品说明

The TPS65310A-Q1 device is a power-management unit, meeting the requirements of digital signal processor (DSP)-controlled automotive systems (for example, Advanced Driver Assistance Systems). With the integration of commonly used features, the TPS65310A-Q1 device significantly reduces board space and system costs.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS65310A-Q1VQFNP (56)8.00 mm x 8.00 mm
