TPS76727是TI公司的一款单通道LDO产品，TPS76727是单输出 LDO、1.0A、固定电压 (2.7V)、低静态电流、快速瞬态响应，本页介绍了TPS76727的产品说明、应用、特性等，并给出了与TPS76727相关的TI元器件型号供参考。
TPS76727 - 单输出 LDO、1.0A、固定电压 (2.7V)、低静态电流、快速瞬态响应 - 单通道LDO - 线性稳压器(LDO) - TI公司（Texas Instruments，德州仪器）
- 1 A Low-Dropout Voltage Regulator
- Available in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, 5.0-V Fixed Output and Adjustable Versions

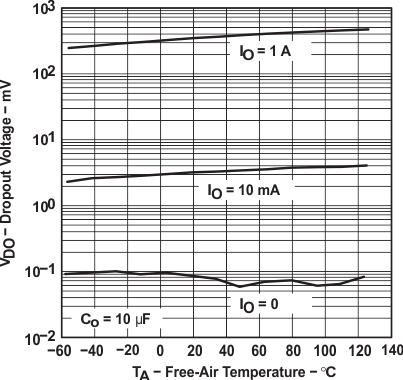

- Dropout Voltage Down to 230 mV at 1 A (TPS76750)
- Ultralow 85 µA Typical Quiescent Current

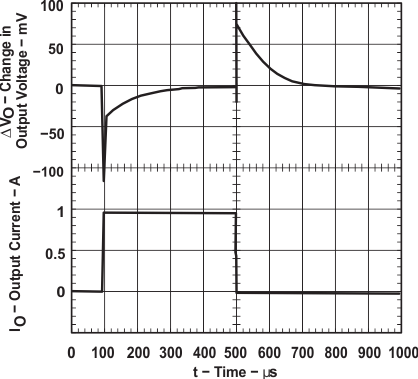

- Fast Transient Response
- 2% Tolerance Over Specified Conditions for Fixed-Output Versions
- Open Drain Power-On Reset With 200-ms Delay (See TPS768xx for PG Option)
- 8-Pin SOIC and 20-Pin TSSOP PowerPAD™ (PWP) Package
- Thermal Shutdown Protection
This device is designed to have a fast transient response and be stable with 10 µF low ESR capacitors. This combination provides high performance at a reasonable cost.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (typically 230 mV at an output current of 1 A for the TPS76750) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 85 µA over the full range of output current, 0 mA to 1 A). These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a sleep mode; applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to 1 µA at TJ = 25°C.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS767xx | SOIC (8) | 4.90 mm × 3.91 mm |
| HTSSOP (20) | 6.50 mm x 4.40 mm |
