TPS796是TI公司的一款单通道LDO产品，TPS796是超低噪声、高 PSRR、快速、射频、1A 低压降线性稳压器，本页介绍了TPS796的产品说明、应用、特性等，并给出了与TPS796相关的TI元器件型号供参考。
TPS796 - 超低噪声、高 PSRR、快速、射频、1A 低压降线性稳压器 - 单通道LDO - 线性稳压器(LDO) - TI公司（Texas Instruments，德州仪器）
- 1-A Low-Dropout Regulator With Enable
- Available in Fixed and Adjustable (1.2 V to 5.5 V) Versions

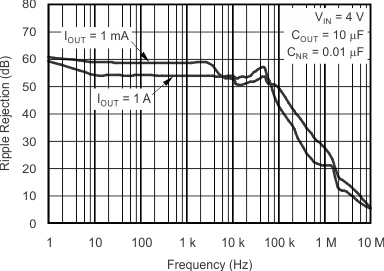

- High PSRR (53 dB at 10 kHz)
- Ultralow-Noise (40 μVRMS, TPS79630)
- Fast Start-Up Time (50 μs)
- Stable With a 1-μF Ceramic Capacitor
- Excellent Load and Line Transient Response
- Very Low Dropout Voltage (250 mV at Full Load, TPS79630)
- 3 × 3 VSON PowerPAD™, SOT223-6, and TO-263 Packages
- RF: VCOs, Receivers, ADCs
- Audio
- Bluetooth®, Wireless LAN
- Cellular and Cordless Telephones
- Handheld Organizers, PDAs
The TPS796 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 VSON, SOT223-6, and TO-263 packages. Each device in the family is stable with a small, 1-μF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 250 mV at 1 A). Each device achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (265 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS79630 exhibits approximately 40 μVRMS of output voltage noise at 3.0-V output, with a 0.1-μF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and need fast response time.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS796 | VSON (8) | 3.00 mm × 3.00 mm |
| SOT-223 (6) | 6.50 mm × 3.50 mm | |
| TO-263 (5) | 10.16 mm × 8.42 mm |
