• Qualified for Automotive Applications
• AEC-Q100 Test Guidance With the Following Results:
  • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C2
• Low Dropout Voltage
  • 300 mV at IOUT = 150 mA
• 4-V to 40-V Wide Input-Voltage Range With up to 45-V Transients
• 300-mA Maximum Output Current
• Ultralow Quiescent Current
  • IQUIESCENT = 35 µA (Typical) at Light Loads
  • ISLEEP < 2 µA When EN = Low
• Fixed (3.3-V and 5-V) and Adjustable (2.5-V to 7-V) Output Voltages
• Integrated Watchdog With Fault/Flag
• Stable With Low-ESR Ceramic Output Capacitor
• Integrated Power-On Reset
  • Programmable Delay
  • Open-Drain Reset Output
• Integrated Fault Protection
  • Short-Circuit and Overcurrent Protection
  • Thermal Shutdown
• Low Input-Voltage Tracking
• Thermally Enhanced 14-Pin HTSSOP-PWP Package and 10-Pin VSON-DRK Package

• Infotainment Systems With Sleep Mode
• Body Control Modules
• Always-On Battery Applications
  • Gateway Applications
  • Remote Keyless Entry Systems
  • Immobilizers

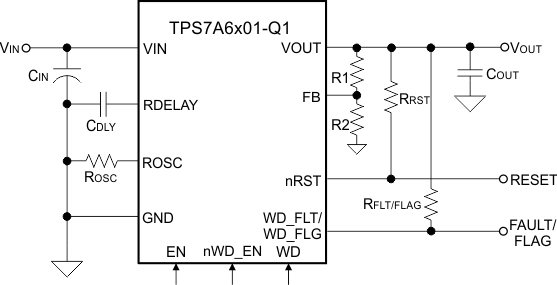

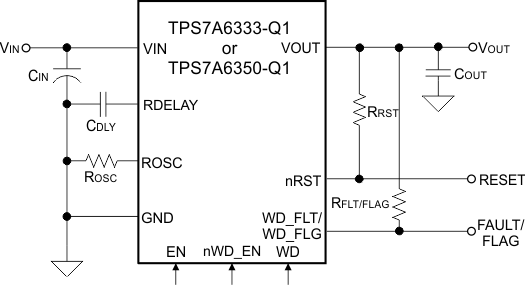

The TPS7A63xx-Q1 and TPS7A6401-Q1 are a family of low-dropout linear voltage regulators designed for low power consumption and quiescent current less than 35µA in light-load applications. These devices, designed to achieve stable operation even with a low-ESR ceramic output capacitor, feature an integrated programmable window watchdog and overcurrent protection. Designers can program the output voltage using external resistors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions. The power-on-reset delay is fixed (250µs typical), or an external capacitor can program the delay. Because of such features, these devices are well-suited in power supplies for various automotive applications.
