TPS826951 - 高效 MicroSiP 降压转换器（截面 <1mm）

TPS826951是TI德州仪器公司的一款非隔离式模块产品，TPS826951是高效 MicroSiP 降压转换器（截面 <1mm），本站介绍了TPS826951的封装应用图解、特点和优点、功能等，并给出了与TPS826951相关的TI元器件型号供参考。

TPS826951 - 高效 MicroSiP 降压转换器（截面 <1mm） - 非隔离式模块 - 电源模块 - 德州仪器

产品特性

Total Solution Size <6.7 mm2

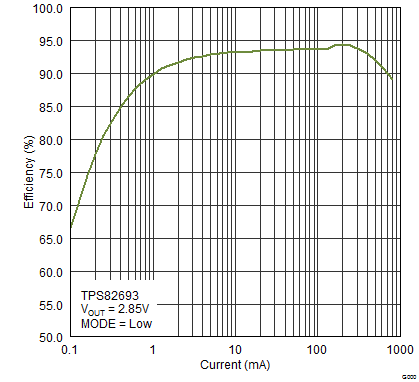

95% Efficiency at 3MHz Operation
23μA Quiescent Current
High Duty-Cycle Operation
Best in Class Load and Line Transient
±2% Total DC Voltage Accuracy
Automatic PFM/PWM Mode Switching
Low Ripple Light-Load PFM Mode
Excellent AC Load Regulation
Internal Soft Start, 200-µs Start-Up Time
Integrated Active Power-Down Sequencing (Optional)
Current Overload and Thermal Shutdown Protection
Sub 1-mm Profile Solution

产品应用

Cell Phones, Smart-Phones
Optical Data Modules
Camera and Sensor Modules
Wearable Devices
LDO Replacement

产品说明

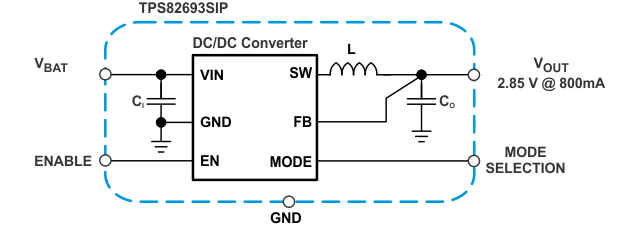

The TPS8269xSIP device is a complete 500mA / 800mA, DC/DC step-down power supply intended for low-power applications. Included in the package are the switching regulator, inductor and input/output capacitors. No additional components are required to finish the design. The TPS8269xSIP is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. The MicroSIP™ DC/DC converter operates at a regulated 3-MHz switching frequency and enters the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the quiescent current to 23μA (typ) during light load operation. For noise-sensitive applications, the device has PWM spread spectrum capability providing a lower noise regulated output, as well as low noise at the input. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency. The TPS8269xSIP is packaged in a compact (2.3mm x 2.9mm) and low profile (1.0mm) BGA package suitable for automated assembly by standard surface mount equipment.

Device Information

ORDER NUMBER	PACKAGE	BODY SIZE
TPS82692SIP	µSIP (8)	2,9mm × 2,3mm
TPS82693SIP	µSIP (8)	2,9mm × 2,3mm
TPS826951SIP	µSIP (8)	2,9mm × 2,3mm
TPS82697SIP	µSIP (8)	2,9mm × 2,3mm
TPS82698SIP	µSIP (8)	2,9mm × 2,3mm
