TS3A4741技术文档下载：

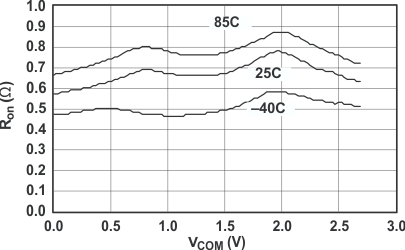

TS3A4741 - 产品图解：
TS3A4741 - 0.8Ω 低电压单电源双路 SPST 模拟开关
TS3A4741是TI公司的一款模拟开关产品，TS3A4741是0.8Ω 低电压单电源双路 SPST 模拟开关，本页介绍了TS3A4741的产品说明、应用、特性等，并给出了与TS3A4741相关的TI元器件型号供参考。
TS3A4741 - 0.8Ω 低电压单电源双路 SPST 模拟开关 - 模拟开关 - 信号开关 - TI公司（Texas Instruments，德州仪器）
产品特性
- Low ON-State Resistance (Ron)
- 0.9-Ω Max (3-V Supply)
- 1.5-Ω Max (1.8-V Supply)
- 0.4-Ω Max Ron Flatness (3-V Supply)
- 1.6-V to 3.6-V Single-Supply Operation
- Available in SOT-23 and VSSOP Packages
- High Current-Handling Capacity (100 mA Continuous)
- 1.8-V CMOS Logic Compatible (3-V Supply)
- Fast Switching: tON = 14 ns, tOFF = 9 ns
产品应用
- Power Routing
- Battery-Powered Systems
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems
- Communications Circuits
- PCMCIA Cards
- Cellular Phones
- Modems
- Hard Drives
产品说明
The TS3A4741 and TS3A4742 are bi-directional, 2-channel single-pole/single-throw (SPST) analog switches with low ON-state resistance (Ron), low-voltage, that operate from a single 1.6-V to 3.6-V supply. These devices have fast switching speeds, handle rail-to-rail analog signals, and consume very low quiescent power.
The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply.
The TS3A4741 has two normally open (NO) switches, and the TS3A4742 has two normally closed (NC) switches.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TS3A4741 | SOT (8) | 2.90 mm × 1.63 mm |
| VSSOP (8) | 3.00 mm × 3.00 mm | |
| TS3A4742 | SOT (8) | 2.90 mm × 1.63 mm |
| VSSOP (8) | 3.00 mm × 3.00 mm |
