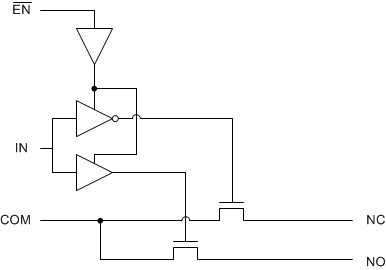

TS3A5018 - 产品图解：
TS3A5018 - 10Ω 四通道 SPDT 模拟开关
TS3A5018是TI公司的一款模拟开关产品，TS3A5018是10Ω 四通道 SPDT 模拟开关，本页介绍了TS3A5018的产品说明、应用、特性等，并给出了与TS3A5018相关的TI元器件型号供参考。
TS3A5018 - 10Ω 四通道 SPDT 模拟开关 - 模拟开关 - 信号开关 - TI公司（Texas Instruments，德州仪器）
产品特性
- Low ON-State Resistance (10 Ω)
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.8-V to 3.6-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Mode (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
产品应用
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
产品说明
The TS3A5018 device is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 3.6 V. This device can handle digital and analog signals, and signals up to V+ can be transmitted in either direction.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TS3A5018 | SOIC (16) | 9.90 mm × 6.00 mm |
| SSOP (16) | 6.00 mm × 4.90 mm | |
| TSSOP (16) | 5.00 mm × 4.40 mm | |
| TVSOP (16) | 4.40 mm × 3.60 mm | |
| UQFN (16) | 2.50 mm × 1.80 mm | |
| VQFN (16) | 4.00 mm × 3.50 mm |
