TS5A23159 - 1Ω 5V/3.3V 双通道 SPDT 开关

TS5A23159是TI德州仪器公司的一款模拟开关产品，TS5A23159是1Ω 5V/3.3V 双通道 SPDT 开关，本站介绍了TS5A23159的封装应用图解、特点和优点、功能等，并给出了与TS5A23159相关的TI元器件型号供参考。

TS5A23159 - 1Ω 5V/3.3V 双通道 SPDT 开关 - 模拟开关 - 信号开关 - 德州仪器

产品特性

Isolation in Power-Down Mode, VCC = 0
Specified Break-Before-Make Switching
Low ON-State Resistance (1 Ω)
Control Inputs are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
Supports Analog and Digital Signals
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

产品应用

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals

产品说明

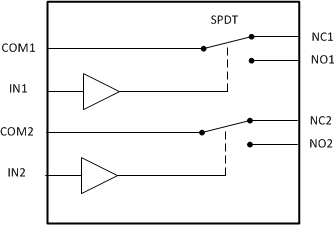

The TS5A23159 is a bidirectional 2-channel single-pole double-throw (SPDT) switch that is designed to operate from 1.65V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TS5A23159	VSSOP (10)	3.00 mm × 3.00 mm
TS5A23159	UQFN (10)	1.50 mm × 2.00 mm
