UCC28950 - 具有同步整流的绿色环保相移全桥控制器

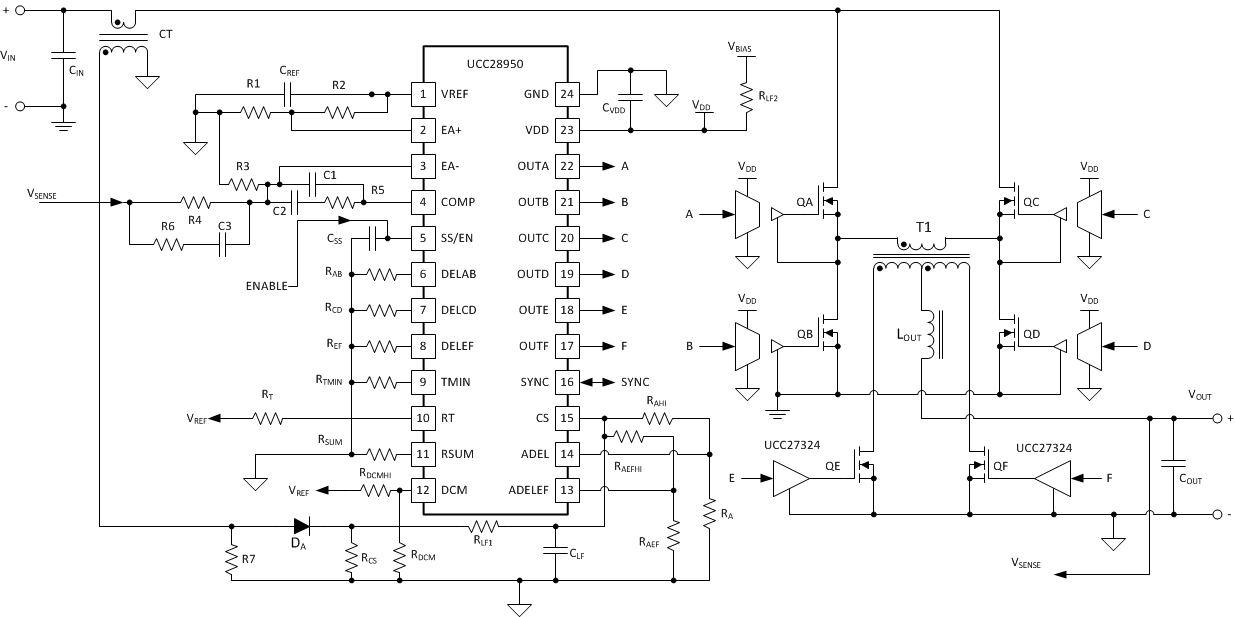

UCC28950是TI德州仪器公司的一款PWM与谐振控制器产品，UCC28950是具有同步整流的绿色环保相移全桥控制器，本站介绍了UCC28950的封装应用图解、特点和优点、功能等，并给出了与UCC28950相关的TI元器件型号供参考。

UCC28950 - 具有同步整流的绿色环保相移全桥控制器 - PWM与谐振控制器 - 离线隔离型DC/DC控制器和转换器 - 德州仪器

产品特性

Enhanced Wide Range Resonant Zero Voltage Switching (ZVS) Capability
Direct Synchronous Rectifier (SR) Control
Light-Load Efficiency Management Including
- Burst Mode Operation
- Discontinuous Conduction Mode (DCM), Dynamic SR On and Off Control with Programmable Threshold
- Programmable Adaptive Delay
Average or Peak Current Mode Control With Programmable Slope Compensation and Voltage Mode Control
Naturally Handles Pre-Biased Start Up With DCM Mode
Closed Loop Soft Start and Enable Function
Programmable Switching Frequency up to 1 MHz with Bi-Directional Synchronization
(±3%) Cycle-by-Cycle Current Limit Protection With Hiccup Mode Support
150-µA Start-Up Current
VDD Undervoltage Lockout
Wide Temperature Range –40°C to +125°C

产品应用

Phase-Shifted Full-Bridge Converters
Datacom, Telecom, and Wireless Base-Station Power
Server, Power Supplies
Industrial Power Systems
High-Density Power Architectures
Solar Inverters, and Electric Vehicles

产品说明

The UCC28950 enhanced phase-shifted controller builds upon Texas Instrument’s industry standard UCx895 phase-shifted controller family with enhancements that offer best in class efficiency in today’s high performance power systems. The UCC28950 implements advanced control of the full-bridge along with active control of the synchronous rectifier output stage.

The primary-side signals allow programmable delays to ensure ZVS operation over wide-load current and input voltage range, while the load current naturally tunes the secondary-side synchronous rectifiers switching delays, maximizing overall system efficiency.

The UCC28950 also offers multiple light-load management features including burst mode and dynamic SR on/off control when transitioning in and out of Discontinuous Current Mode (DCM) operation, ensuring ZVS operation is extended down to much lighter loads.

In addition, the UCC28950 includes support for current or voltage mode control. Programmable switching frequency up to 1 MHz and a wide set of protection features including cycle-by-cycle current limit, UVLO and thermal shutdown. A 90-degree phase-shifted interleaved synchronized operation can be easily arranged between two converters.

The UCC28950 is available in TSSOP-24 package.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
UCC28950	TSSOP (24)	7.80 mm x 4.40 mm
