ADC3222 - ADC322x 双通道 12 位 125 Msps 模数转换器

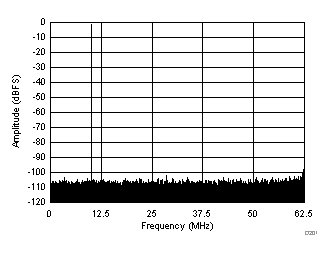

ADC3222是TI德州仪器公司的一款高速ADC(>10MSPS)产品，ADC3222是ADC322x 双通道 12 位 125 Msps 模数转换器，本站介绍了ADC3222的封装应用图解、特点和优点、功能等，并给出了与ADC3222相关的TI元器件型号供参考。

ADC3222 - ADC322x 双通道 12 位 125 Msps 模数转换器 - 高速ADC(>10MSPS) - 模数转换器 - 德州仪器

产品特性

Dual Channel
12-Bit Resolution
Single Supply: 1.8 V
Serial LVDS Interface (SLVDS)
Flexible Input Clock Buffer with Divide-by-1, -2, -4
SNR = 70.2 dBFS, SFDR = 87 dBc at fIN = 70 MHz
Ultra-Low Power Consumption:
- 116 mW/Ch at 125 MSPS
Channel Isolation: 105 dB
Internal Dither and Chopper
Support for Multi-Chip Synchronization
Pin-to-Pin Compatible with 14-Bit Version
Package: VQFN-48 (7 mm × 7 mm)

产品应用

Multi-Carrier, Multi-Mode Cellular Base Stations
Radar and Smart Antenna Arrays
Munitions Guidance
Motor Control Feedback
Network and Vector Analyzers
Communications Test Equipment
Nondestructive Testing
Microwave Receivers
Software-Defined Radios (SDRs)
Quadrature and Diversity Radio Receivers
Handheld Radio and Instrumentation

产品说明

The ADC322x are a high-linearity, ultra-low power, dual-channel, 12-bit, 25-MSPS to 125-MSPS, analog-to-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more flexibility for system clock architecture design and the SYSREF input enables complete system synchronization. The ADC322x family supports serial low-voltage differential signaling (LVDS) in order to reduce the number of interface lines, thus allowing for high system integration density. The serial LVDS interface is two-wire, where each ADC data are serialized and output over two LVDS pairs. An internal phase-locked loop (PLL) multiplies the incoming ADC sampling clock to derive the bit clock that is used to serialize the 12-bit output data from each channel. In addition to the serial data streams, the frame and bit clocks are also transmitted as LVDS outputs.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
ADC322x	VQFN (48)	7.00 mm × 7.00 mm
