ADS1118-Q1 - 具有集成 MUX、PGA、基准、振荡器和温度传感器的汽车类 16 位 ADC
ADS1118-Q1是TI德州仪器公司的一款精密ADC(<=10MSPS)产品,ADS1118-Q1是具有集成 MUX、PGA、基准、振荡器和温度传感器的汽车类 16 位 ADC,本站介绍了ADS1118-Q1的封装应用图解、特点和优点、功能等,并给出了与ADS1118-Q1相关的TI元器件型号供参考。
ADS1118-Q1 - 具有集成 MUX、PGA、基准、振荡器和温度传感器的汽车类 16 位 ADC - 精密ADC(<=10MSPS) - 模数转换器 - 德州仪器
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results:
- Temperature Grade 1: –40°C to +125°C
- HBM ESD Classification 2
- CDM ESD Classification C6
- Wide Supply Range: 2 V to 5.5 V
- Low Current Consumption:
- Continuous Mode: Only 150 μA
- Single-Shot Mode: Automatic Power-Down
- Programmable Data Rate: 8 SPS to 860 SPS
- Single-Cycle Settling
- Internal Low-Drift Voltage Reference
- Internal Temperature Sensor: 2°C (Maximum) Error
- Internal Oscillator
- Internal PGA
- Four Single-Ended or Two Differential Inputs
- Battery Management Systems
- Automotive Sensors
- Thermocouples
- Resistance Temperature Detectors (RTDs)
- Pressure and Strain Gauge Sensors
- Electrochemical Gas Sensors
- Particulate Matter Sensors
The ADS1118-Q1 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals. The ADS1118-Q1 integrates a programmable gain amplifier (PGA), voltage reference, oscillator, and high-accuracy temperature sensor. These features, along with a wide power-supply range from 2 V to 5.5 V, make the ADS1118-Q1 ideally suited for power- and space-constrained, sensor-measurement applications.

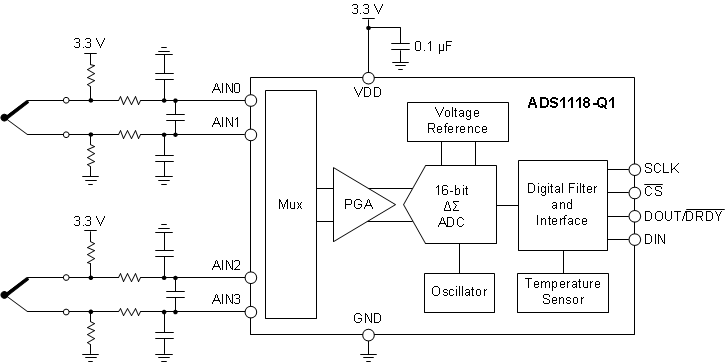

The ADS1118-Q1 performs conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing both large and small signals to be measured with high resolution. An input multiplexer (mux) allows measurement of two differential or four single-ended inputs. The high-accuracy temperature sensor is used for system-level temperature monitoring, or cold-junction compensation for thermocouples.
The ADS1118-Q1 operates either in continuous-conversion mode, or in a single-shot mode that automatically powers down after a conversion. Single-shot mode significantly reduces current consumption during idle periods. Data are transferred through a serial peripheral interface (SPI™). The ADS1118-Q1 is specified from –40°C to +125°C.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| ADS1118-Q1 | VSSOP (10) | 3.00 mm × 3.00 mm |
