ADS8332 - 2.7V-5.5V、16 位 500KSPS 低功耗串行 ADC、8 通道 MUX 和输出

ADS8332是TI德州仪器公司的一款精密ADC(<=10MSPS)产品，ADS8332是2.7V-5.5V、16 位 500KSPS 低功耗串行 ADC、8 通道 MUX 和输出，本站介绍了ADS8332的封装应用图解、特点和优点、功能等，并给出了与ADS8332相关的TI元器件型号供参考。

ADS8332 - 2.7V-5.5V、16 位 500KSPS 低功耗串行 ADC、8 通道 MUX 和输出 - 精密ADC(<=10MSPS) - 模数转换器 - 德州仪器

产品特性

Low-Power, Flexible Supply Range:
- 2.7-V to 5.5-V Analog Supply
- 8.7 mW (250 kSPS in Auto-NAP Mode, VA = 2.7 V, VBD = 1.65 V)
- 14.2 mW (500 kSPS, VA = 2.7 V, VBD = 1.65 V)
Up to 500-kSPS Sampling Rate
Excellent DC Performance:
- ±1.2 LSB Typical, ±2 LSB Maximum INL at 2.7 V
- ±0.6 LSB Typical, –1/1.5 LSB Maximum DNL at 2.7 V
- 16-Bit NMC Over Temperature
Excellent AC Performance at 5 V, fIN = 1 kHz:
- 91.5-dB SNR, 101-dB SFDR, –100-dB THD
Flexible Analog Input Arrangement:
- On-Chip 4-/8-Channel Mux With Breakout
- Auto/Manual Channel Select and Trigger
Other Hardware Features:
- On-Chip Conversion Clock (CCLK)
- Software/Hardware Reset
- Programmable Status/Polarity EOC/INT
- Daisy-Chain Mode
- Global CONVST (Independent of CS)
- Deep, Nap, and Auto-NAP Powerdown Modes
- SPI™/DSP Compatible Serial Interface
- Separate I/O Supply: 1.65 V to VA
- SCLK up to 40 MHz (VA = VBD = 5 V)
24-Pin 4-mm × 4-mm VQFN and 24-Pin TSSOP Packages

产品应用

Communications
Transducer Interfaces
Medical Instruments
Magnetometers
Industrial Process Controls
Data Acquisition Systems
Automatic Test Equipment

产品说明

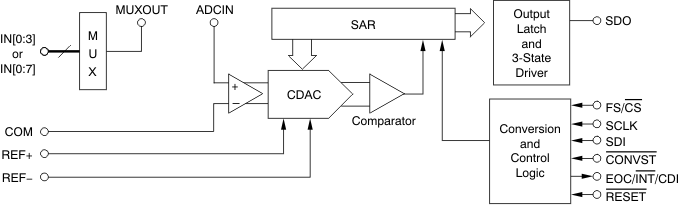

The ADS8331 is a low-power, 16-bit, 500-k samples-per-second (SPS) analog-to-digital converter (ADC) with a unipolar, 4-to-1 multiplexer (mux) input. The device includes a 16-bit capacitor-based successive approximation register (SAR) ADC with inherent sample and hold.

The ADS8332 is based on the same core and includes a unipolar 8-to-1 input mux. Both devices offer a high-speed, wide-voltage serial interface and are capable of daisy-chain operation when multiple converters are used.

These converters are available in 24-pin, 4 × 4 QFN and 24-pin TSSOP packages and are fully specified for operation over the industrial –40°C to 85°C temperature range.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
ADS833x	VQFN (24)	4.00 mm × 4.00 mm
ADS833x	TSSOP (24)	7.80 mm × 4.40 mm
