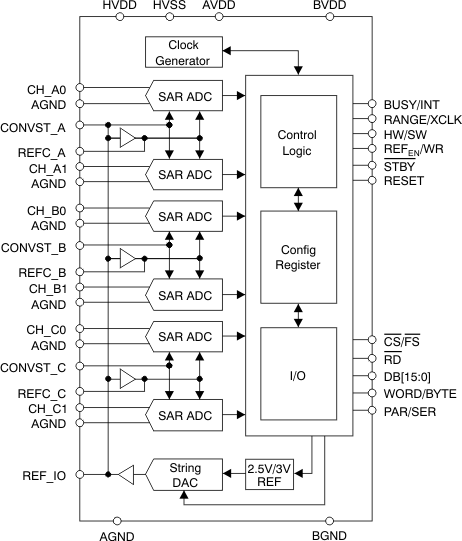

ADS8555 - 产品图解:
ADS8555-16 位、6 通道同步采样 ADC
ADS8555-精密ADC(<=10MSPS)-模数转换器-数据转换器
ADS8555-ADS8555 16-Bit, Six-Channel, Simultaneous Sampling Analog-to-Digital Converter
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - ADS8555介绍
ADS8555 - 16 位、6 通道同步采样 ADC

ADS8555是TI公司的一款精密ADC(<=10MSPS)产品,ADS8555是16 位、6 通道同步采样 ADC,本页介绍了ADS8555的产品说明、应用、特性等,并给出了与ADS8555相关的TI元器件型号供参考。

ADS8555 - 16 位、6 通道同步采样 ADC - 精密ADC(<=10MSPS) - 模数转换器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Six SAR ADCs Grouped in Three Pairs
  • Maximum Data Rate Per Channel With Internal Clock and Reference: 630 kSPS (Parallel) or 450 kSPS (Serial)
  • Maximum Data Rate Per Channel With External Clock and Reference: 800 kSPS (Parallel) or 500 kSPS (Serial)
  • Pin-Selectable or Programmable Input Voltage Ranges: Up to ±12 V
  • Excellent AC Performance: 91.5-dB SNR, –94-dB THD
  • Programmable and Buffered Internal Reference: 0.5 V to 2.5 V and 0.5 V to 3 V
  • Comprehensive Power-Down Modes:
    • Deep Power Down (Standby Mode)
    • Auto-Nap Power Down
  • Selectable Parallel or Serial Interface
  • Operating Temperature Range: –40°C to 125°C
  • LQFP-64 Package
产品应用
  • Power Quality Measurements
  • Protection Relays
  • Multi-Axis Motor Controls
  • Programmable Logic Controllers
  • Industrial Data Acquisition
产品说明

The ADS8555 device contains six low-power, 16-bit, successive approximation register (SAR)-based analog-to-digital converters (ADCs) with true bipolar inputs. Each channel contains a sample-and-hold circuit that allows simultaneous high-speed multi-channel signal acquisition.

The ADS8555 device supports data rates of up to 630 kSPS in parallel interface mode or up to 450 kSPS if the serial interface is used. The bus width of the parallel interface can be set to eight or 16 bits. In serial mode, up to three output channels can be activated.

The ADS8555 device is specified over the extended industrial temperature range of –40°C to 125°C and is available in an LQFP-64 package.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
ADS8555LQFP (64)10.00 mm × 10.00 mm
