1 AM1802 ARM Microprocessor

1.1 Features

300-MHzARM926EJ-S™ RISC MPU
ARM926EJ-S Core

32-Bit and 16-Bit (Thumb®) Instructions
Single-Cycle MAC
ARM Jazelle® Technology
Embedded ICE-RT™ for Real-Time Debug

ARM9™ Memory Architecture

16KB of Instruction Cache
16KB of Data Cache
8KB of RAM (Vector Table)
64KB of ROM

Enhanced Direct Memory Access Controller 3 (EDMA3):

2 Channel Controllers
3 Transfer Controllers
64 Independent DMA Channels
16 Quick DMA Channels
Programmable Transfer Burst Size

128KB of On-Chip Memory
1.8-V or 3.3-V LVCMOS I/Os (Except for USB and DDR2 Interfaces)
Two External Memory Interfaces:

EMIFA
- NOR (8- or 16-Bit-Wide Data)
- NAND (8- or 16-Bit-Wide Data)
- 16-Bit SDRAM with 128-MB Address Space
DDR2/Mobile DDR Memory Controller with one of the following:
- 16-Bit DDR2 SDRAM with 256-MB Address Space
- 16-Bit mDDR SDRAM with 256-MB Address Space

Three Configurable 16550-Type UART Modules:

With Modem Control Signals
16-Byte FIFO
16x or 13x Oversampling Option

Two Serial Peripheral Interfaces (SPIs) Each with Multiple Chip Selects
One Multimedia Card (MMC)/Secure Digital (SD) Card Interfaces with Secure Data I/O (SDIO) Interfaces
One Master and Slave Inter-Integrated Circuit (I2C Bus™)
USB 2.0 OTG Port with Integrated PHY (USB0)

USB 2.0 High- and Full-Speed Client
USB 2.0 High-, Full-, and Low-Speed Host
End Point 0 (Control)
End Points 1, 2, 3, 4 (Control, Bulk, Interrupt or ISOC) RX and TX

One Multichannel Audio Serial Port (McASP):

Transmit and Receive Clocks
Two Clock Zones and 16 Serial Data Pins
Supports TDM, I2S, and Similar Formats
DIT-Capable
FIFO Buffers for Transmit and Receive

10/100 Mbps Ethernet MAC (EMAC):

IEEE 802.3 Compliant
MII Media-Independent Interface
RMII Reduced Media-Independent Interface
Management Data I/O (MDIO) Module

Real-Time Clock (RTC) with 32-kHz Oscillator and Separate Power Rail
Three 64-Bit General-Purpose Timers (Each Configurable as Two 32-Bit Timers)
One 64-Bit General-Purpose or Watchdog Timer (Configurable as Two 32-Bit General-Purpose Timers)
Packages:

361-Ball Pb-Free Plastic Ball Grid Array (PBGA) [ZCE Suffix], 0.65-mm Ball Pitch
361-Ball PBGA [ZWT Suffix], 0.80-mm Ball Pitch

Industrial Temperature

1.2 Applications

Medical, Healthcare, and Fitness
Building Automation
ePOS

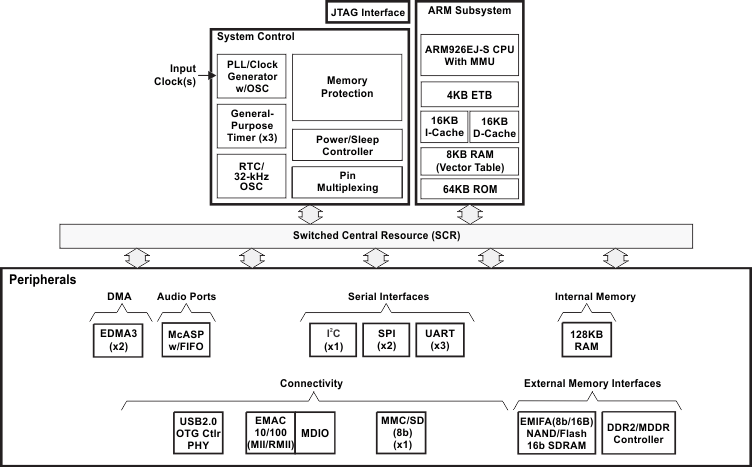

1.3 Description

The AM1802 ARM microprocessor is a low-power applications processor based on ARM926EJ-S.

The device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs) to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and high processing performance life through the maximum flexibility of a fully integrated mixed processor solution.

The ARM926EJ-S is a 32-bit RISC processor core that performs 32-bit or 16-bit instructions and processes 32-bit, 16-bit, or 8-bit data. The core uses pipelining so that all parts of the processor and memory system can operate continuously.

The ARM core has a coprocessor 15 (CP15), protection module, and data and program memory management units (MMUs) with table look-aside buffers. The ARM core processor has separate 16-KB instruction and 16-KB data caches. Both are four-way associative with virtual index virtual tag (VIVT). The ARM core also has 8KB of RAM (Vector Table) and 64KB of ROM.

The peripheral set includes: a 10/100 Mbps Ethernet media access controller (EMAC) with a management data input/output (MDIO) module; one USB2.0 OTG interface; one inter-integrated circuit (I2C Bus) interface; one multichannel audio serial port (McASP) with 16 serializers and FIFO buffers; two serial peripheral interfaces (SPIs) with multiple chip selects; four 64-bit general-purpose timers each configurable (one configurable as watchdog); a configurable 16-bit host-port interface (HPI); up to 9 banks of general-purpose input/output (GPIO) pins, with each bank containing 16 pins with programmable interrupt and event generation modes, multiplexed with other peripherals; three UART interfaces (each with RTS and CTS); two external memory interfaces: an asynchronous and SDRAM external memory interface (EMIFA) for slower memories or peripherals; and a higher speed DDR2/Mobile DDR controller.

The EMAC provides an efficient interface between the device and a network. The EMAC supports both 10Base-T and 100Base-TX, or 10 Mbps and 100 Mbps in either half- or full-duplex mode. Additionally, an MDIO interface is available for PHY configuration. The EMAC supports both MII and RMII interfaces.

The rich peripheral set provides the ability to control external peripheral devices and communicate with external processors. For details on each of the peripherals, see the related sections in this document and the associated peripheral reference guides.

The device has a complete set of development tools for the ARM processor. These tools include C compilers, and scheduling, and a Windows® debugger interface for visibility into source code execution.

Device Information

PART NUMBER	PACKAGE	BODY SIZE
AM1802ZWT	NFBGA (361)	16,00 mm x 16,00 mm
AM1802ZCE	NFBGA (361)	13,00 mm x 13,00 mm
