TS3A4751 - 0.9Ω，低压，单电源四路 SPST 模块开关

TS3A4751是TI德州仪器公司的一款模拟开关产品，TS3A4751是0.9Ω，低压，单电源四路 SPST 模块开关，本站介绍了TS3A4751的封装应用图解、特点和优点、功能等，并给出了与TS3A4751相关的TI元器件型号供参考。

TS3A4751 - 0.9Ω，低压，单电源四路 SPST 模块开关 - 模拟开关 - 信号开关 - 德州仪器

产品特性

Low ON-State Resistance (RON)
- 0.9 Ω Max (3-V Supply)
- 1.5 Ω Max (1.8-V Supply)
RON Flatness: 0.4 Ω Max (3-V)
RON Channel Matching
- 0.05 Ω Max (3-V Supply)
- 0.15 Ω Max (1.8-V Supply)
1.6-V to 3.6-V Single-Supply Operation
1.8-V CMOS Logic Compatible (3-V Supply)
High Current-Handling Capacity (100 mA Continuous)
Fast Switching: tON = 5 ns, tOFF = 4 ns
Supports Both Digital and Analog Applications
ESD Protection Exceeds JESD-22
- ±4000-V Human Body Model (A114-A)
- 300-V Machine Model (A115-A)
- ±1000-V Charged-Device Model (C101)

产品应用

Power Routing
Battery-Powered Systems
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
PCMCIA Cards
Cellular Phones
Modems
Hard Drives

产品说明

The TS3A4751 device is a bidirectional, 4-channel, normally open (NO) single-pole single-throw (SPST) analog switch that operates from a single 1.6-V to 3.6-V supply. This device has fast switching speeds, handles rail-to-rail analog signals, and consumes very low quiescent power.

The digital input is 1.8-V CMOS compatible when using a 3-V supply.

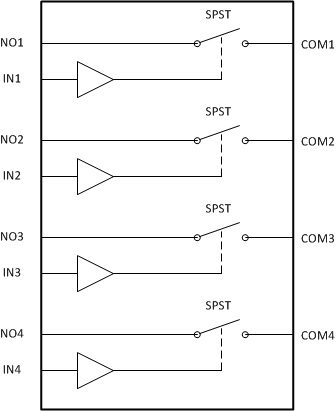

The TS3A4751 device has four normally open (NO) switches. The TS3A4751 is available in a 14-pin thin shrink small-outline package (TSSOP) and in space-saving 14-pin VQFN (RGY) and micro X2QFN (RUC) packages.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TS3A4751	TSSOP (14)	5.00 mm × 4.40 mm
	VQFN (14)	3.50 mm × 3.50 mm
	X2QFN (14)	2.00 mm × 2.00 mm
