BQ27425-G2B - 系统端 Impedance Track 电量监测计

BQ27425-G2B是TI德州仪器公司的一款电池电量监测产品，BQ27425-G2B是系统端 Impedance Track 电量监测计，本站介绍了BQ27425-G2B的封装应用图解、特点和优点、功能等，并给出了与BQ27425-G2B相关的TI元器件型号供参考。

BQ27425-G2B - 系统端 Impedance Track 电量监测计 - 电池电量监测 - 电池管理产品 - 德州仪器

产品特性

Single-Series Cell Li-Ion Battery Fuel Gauge
- Resides on System Board
- Supports Embedded or Removable Batteries
- Powered Directly From Battery With Integrated LDO
- Low-Value Integrated Sense Resistor (10 mΩ, Typical)
Easy-to-Configure Fuel Gauging Based on Patented Impedance Track™ Technology
- Reports Remaining Capacity and State of Charge (SOC) With Smoothing Filter
- Automatically Adjusts for Battery Aging, Self-Discharge, Temperature, and Rate Changes
- Battery State-of-Health (Aging) Estimation
Microcontroller Peripheral Supports:
- 400-kHz I2C Serial Interface
- Configurable SOC Interrupt or Battery Low Digital Output Warning
- Internal Temperature Sensor or Host-Reported Temperature

产品应用

Smart Phones, Feature Phones, and Tablets
Digital Still and Video Cameras
Handheld Terminals
MP3 or Multimedia Players

产品说明

The Texas Instruments bq27425-G2 fuel gauge is an easy-to-configure microcontroller peripheral that provides system-side fuel gauging for single-cell Li-Ion batteries. The device requires minimal user configuration and system microcontroller firmware development.

The fuel gauge uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), and battery voltage (mV).

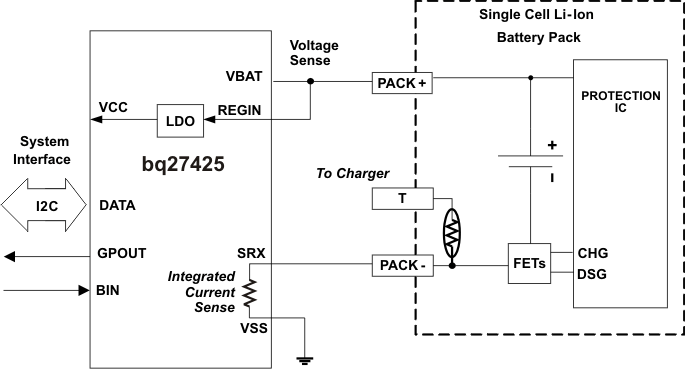

Battery fuel gauging with the bq27425-G2 fuel gauge requires connections only to PACK+ (P+) and PACK– (P–) for a removable battery pack or embedded battery circuit. The 15-pin, 2.69 mm × 1.75 mm, 0.5-mm pitch chip scale package (DSBGA) is ideal for space-constrained applications.

产品器件信息

DEVICE NAME	PACKAGE	BODY SIZE (NOM)
bq27425-G2	DSBGA (15)	2.69 mm × 1.75 mm
