BQ294602 - 用于 2 节和 3 节锂离子的 bq294602 和 bq294622 过压保护

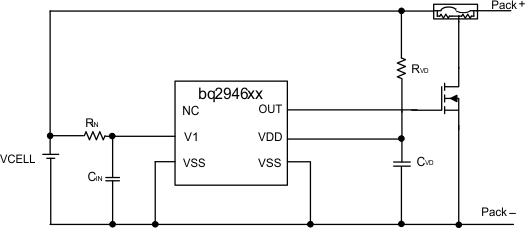

BQ294602是TI德州仪器公司的一款电池监控,保护及认证解决方案产品，BQ294602是用于 2 节和 3 节锂离子的 bq294602 和 bq294622 过压保护，本站介绍了BQ294602的封装应用图解、特点和优点、功能等，并给出了与BQ294602相关的TI元器件型号供参考。

BQ294602 - 用于 2 节和 3 节锂离子的 bq294602 和 bq294622 过压保护 - 电池监控,保护及认证解决方案 - 电池管理产品 - 德州仪器

产品特性

Single-Cell Overvoltage Monitor for Secondary Protection
Fixed Programmable Delay Timer
Fixed Overvoltage Protection (OVP) Threshold
- Available Range of 3.85 V to 4.6 V
Fixed OVP Delay Option: 4 s or 6.5 s
High-Accuracy OVP: ±10 mV
Low Power Consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
Low Leakage Current per Cell Input < 100 nA
Small Package Footprint
- 6-Pin SON

产品应用

Second-Level Protection in Li-Ion Battery Packs in:
- Tablets
- Slates
- Portable Equipment and Instrumentation

产品说明

The bq2946xx family of products is a secondary-level overvoltage monitor and protector for Li-Ion battery pack systems. The cell is monitored for overvoltage condition and triggers an internal counter once the OVP threshold is exceeded; after a fixed set delay, the out is transitioned to a high level. The output is reset (goes low) if the cell voltage drops below the set threshold minus the hysteresis.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
bq294602	SON (6)	2.00 mm × 2.00 mm
bq294604
bq294682
