TPD4EUSB30是TI公司的一款高性能TVS二极管产品，TPD4EUSB30是用于超高速 (6 GBPS) USB 3.0 接口的 4 通道 ESD 解决方案，本页介绍了TPD4EUSB30的产品说明、应用、特性等，并给出了与TPD4EUSB30相关的TI元器件型号供参考。
TPD4EUSB30 - 用于超高速 (6 GBPS) USB 3.0 接口的 4 通道 ESD 解决方案 - 高性能TVS二极管 - ESD保护二极管 - TI公司（Texas Instruments，德州仪器）
- Supports USB 3.0 Data Rates (5 Gbps)
- IEC 61000-4-2 ESD Protection (Level 4 Contact)
- IEC 61000-4-5 Surge Protection
- 5 A (8/20 µs)
- Low Capacitance
- DRT: 0.7 pF (Typ)
- DQA: 0.8 pF (Typ)
- Dynamic Resistance: 0.6 Ω (Typ)
- Space-Saving DRT, DQA Packages
- Flow-Through Pin Mapping
- Notebooks
- Set-Top Boxes
- DVD Players
- Media Players
- Portable Computers

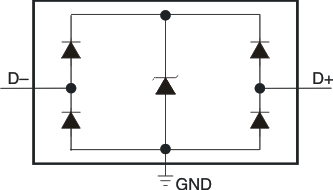

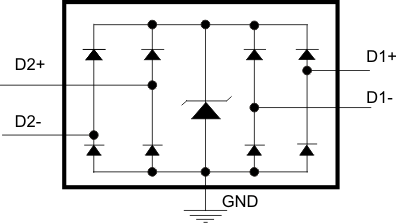

The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 μs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.
The TPD2EUSB30A offers low 4.5-V DC break-down voltage. The low capacitance, low break-down voltage, and low dynamic resistance make the TPD2EUSB30A a superior protection device for high-speed differential IOs.
The TPD2EUSB30 and TPD2EUSB30A are offered in space saving DRT (1 mm × 1 mm) package. The TPD4EUSB30 is offered in space saving DQA (2.5 mm × 1.0 mm) package.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD2EUSB30 | SOT (3) | 1.00 mm x 0.80 mm |
| TPD2EUSB30A | ||
| TPD4EUSB30 | USON (10) | 2.50 mm x 1.00 mm |
