BQ294604技术文档下载：

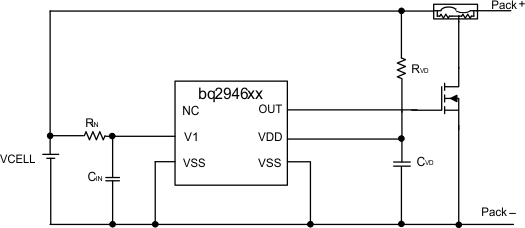

BQ294604 - 产品图解：
BQ294604 - 用于 1 节锂离子电池的过压保护器件，具有 4.35v OVP
BQ294604是TI公司的一款电池监控,保护及认证解决方案产品，BQ294604是用于 1 节锂离子电池的过压保护器件，具有 4.35v OVP，本页介绍了BQ294604的产品说明、应用、特性等，并给出了与BQ294604相关的TI元器件型号供参考。
BQ294604 - 用于 1 节锂离子电池的过压保护器件，具有 4.35v OVP - 电池监控,保护及认证解决方案 - 电池管理产品 - TI公司（Texas Instruments，德州仪器）
产品特性
- Single-Cell Overvoltage Monitor for Secondary Protection
- Fixed Programmable Delay Timer
- Fixed Overvoltage Protection (OVP) Threshold
- Available Range of 3.85 V to 4.6 V
- Fixed OVP Delay Option: 4 s or 6.5 s
- High-Accuracy OVP: ±10 mV
- Low Power Consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
- Low Leakage Current per Cell Input < 100 nA
- Small Package Footprint
- 6-Pin SON
产品应用
- Second-Level Protection in Li-Ion Battery Packs in:
- Tablets
- Slates
- Portable Equipment and Instrumentation
产品说明
The bq2946xx family of products is a secondary-level overvoltage monitor and protector for Li-Ion battery pack systems. The cell is monitored for overvoltage condition and triggers an internal counter once the OVP threshold is exceeded; after a fixed set delay, the out is transitioned to a high level. The output is reset (goes low) if the cell voltage drops below the set threshold minus the hysteresis.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| bq294602 | SON (6) | 2.00 mm × 2.00 mm |
| bq294604 | ||
| bq294682 |
