CSD85302L - CSD85302L
CSD85302L是TI公司的一款N通道MOSFET晶体管产品，CSD85302L是CSD85302L，本页介绍了CSD85302L的产品说明、应用、特性等，并给出了与CSD85302L相关的TI元器件型号供参考。
CSD85302L - CSD85302L - N通道MOSFET晶体管 - 功率MOSFET - TI公司（Texas Instruments，德州仪器）
产品特性
- Common Drain Configuration
- Low On-Resistance
- Small Footprint of 1.35 mm × 1.35 mm
- Pb Free and Halogen Free
- RoHS Compliant
- ESD HBM Protection >2.5 kV
产品应用
- USB Type-C/PD
- Battery Management
- Battery Protection
产品说明
This 20 V, 18.7 mΩ, 1.35 mm × 1.35 mm LGA Dual NexFET™ power MOSFET is designed to minimize resistance in the smallest footprint. Its small footprint and common drain configuration make the device ideal for battery-powered applications in small handheld devices.
Top View ConfigurationText added for spacing
Product Summary
| TA = 25°C | TYPICAL VALUE | UNIT | ||
|---|---|---|---|---|
| VS1S2 | Source-to-Source Voltage | 20 | V | |

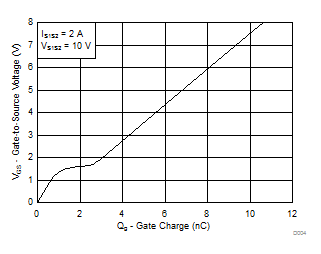

| Qg | Gate Charge Total (4.5 V) | 6 | nC | |
| Qgd | Gate Charge Gate-to-Drain | 1.4 | nC | |

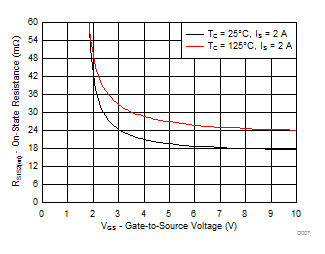

| RS1S2(on) | Source-to-Source On-Resistance | VGS = 2.5 V | 29 | mΩ |
| VGS = 4.5 V | 20 | mΩ | ||
| VGS = 6.5 V | 18.7 | mΩ | ||
| VGS(th) | Threshold Voltage | 0.9 | V | |
Ordering Information(1)
| DEVICE | QTY | MEDIA | PACKAGE | SHIP |
|---|---|---|---|---|
| CSD85302L | 3000 | 7-Inch Reel | 1.35 × 1.35 mm Land Grid Array (LGA) Package | Tape and Reel |
| CSD85302LT | 250 |
