• Ensured Monotonicity to 10-bits
• Low Power Operation: 156-µA maximum at 3.3 V
• Extended Power Supply Range (2.7 V to 5.5 V)
• I2C-Compatible 2-Wire Interface Which Supports Standard (100-kHz), Fast (400-kHz), and High-Speed (3.4-MHz) Modes
• Rail-to-Rail Voltage Output
• Very Small Package
• DAC101C081Q is AEC Q100 Grade 1 Qualified and Manufactured on Automotive Grade Flow
• Resolution: 10 Bits
• INL: ±2 LSB (Maximum)
• DNL: +0.3/-0.2 LSB (Maximum)
• Setting Time: 6-µs (Maximum)
• Zero Code Error: +10-mV (Maximum)
• Full-Scale Error: −0.7 %FS (Maximum)
• Supply Power (Normal): 380-µW (3-V) / 730-µW (5-V) Typical
• Supply Power (Power Down): 0.5-µW (3-V) / 0.9-µW (5-V) Typical

• Industrial Process Control
• Portable Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Test Equipment
• Automotive

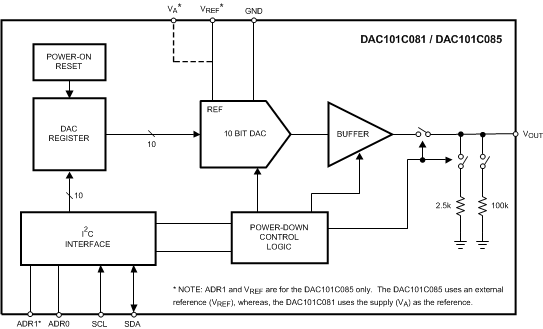

The DAC101C081 device is a 10-bit, single channel, voltage-output digital-to-analog converter (DAC) that operates from a 2.7 V to 5.5 V supply. The output amplifier allows rail-to-rail output swing and has an 6-µsec settling time. The DAC101C081 uses the supply voltage as the reference to provide the widest dynamic output range and typically consumes 132 µA while operating at 5.0 V. It is available in 6-lead SOT and WSON packages and provides three address options (pin selectable).

As an alternative, the DAC101C085 provides nine I2C™ addressing options and uses an external reference. It has the same performance and settling time as the DAC101C081 and is available in an 8-lead VSSOP.

The DAC101C081 and DAC101C085 use a 2-wire, I2C-compatible serial interface that operates in all three speed modes, including high speed mode (3.4 MHz). An external address selection pin allows up to three DAC101C081 or nine DAC101C085 devices per 2-wire bus. Pin compatible alternatives to the DAC101C081 are available that provide additional address options.
