• Provides a 30-Bit Input Pixel Interface:
  • YUV, YCrCb, or RGB Data Format
  • 8, 9, or 10 Bits per Color
  • Pixel Clock Support up to 150 MHz
• Provides a Single Channel, LVDS Based, Flat-Panel Display (FPD)-Link Compatible Input Interface:
  • Supports Sources up to a 90-MHz Effective Pixel Clock Rate
  • Four Demodulated Pixel-Mapped Modes Supported for 8, 9, 10 YUV, YCrCb, or RGB Formatted Inputs
• Supports 45- to 120-Hz Frame Rates
• Full Support for Diamond 0.45 WXGA
• High-Speed, Double Data Rate (DDR) Digital Micromirror Device (DMD) Interface
• 149.33-MHz ARM926™ Microprocessor
• Microprocessor Peripherals:
  • Programmable Pulse-Width Modulation (PWM) and Capture Timers
  • Two I2C Ports
  • Two UART Ports (for Debug Only)
  • 32 KB of Internal RAM
  • Dedicated LED PWM Generators
• Image Processing:
  • Auto-Lock for Standard, Wide, and Black Border
  • 1D Keystone Correction
  • Programmable Degamma
• On-Screen Display (OSD)
• Splash Screen Display Support
• Integrated Clock Generation Circuitry
  • Operates on a Single 32-MHz Crystal
  • Integrated Spread Spectrum Clocking
• Integrated 64-Mb Frame Memory Eliminates the Need for External High-Speed Memory
• External Memory Support: Parallel Flash for Microprocessor and PWM Sequence
• System Control:
  • DMD Power and Reset Driver Control
  • DMD Horizontal and Vertical Image Flip
• JTAG Boundary Scan Test Support
• 419-Pin Plastic Ball Grid Array Package

• Battery Powered Mobile Accessory HD Projector
• Battery Powered Smart HD Accessory
• Screenless Display - Interactive Display
• Mobile Cinema
• Gaming Display

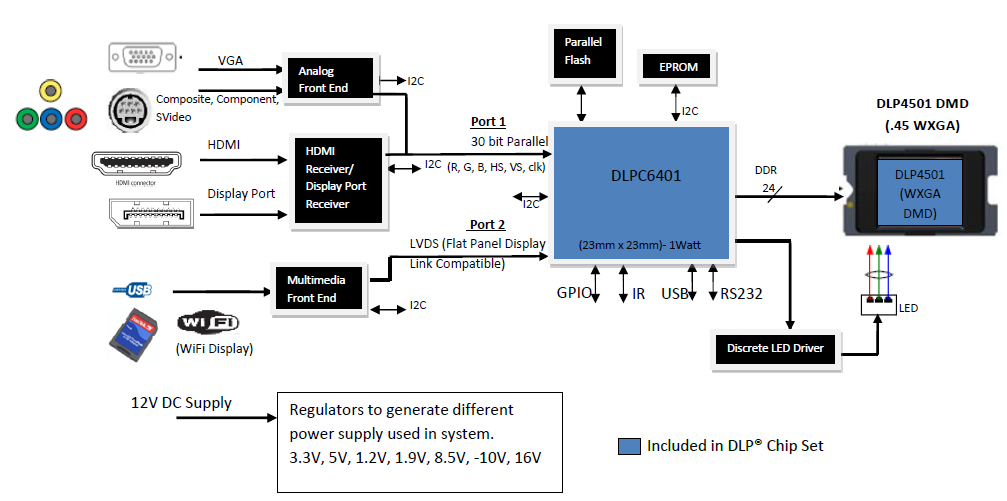

The DLPC6401 digital controller, part of the DLP4500 (.45 WXGA) chipset, supports reliable operation of the DLP4500 digital micromirror device (DMD). The DLPC6401 controller provides a convenient, multi-functional interface between system electronics and the DMD, enabling small form factor and high resolution HD displays.
