DLPR910是TI公司的一款图形速率(>=8kHz)产品，DLPR910是用于 DLPC910 的 DLPR910 配置 PROM，本页介绍了DLPR910的产品说明、应用、特性等，并给出了与DLPR910相关的TI元器件型号供参考。
DLPR910 - 用于 DLPC910 的 DLPR910 配置 PROM - 图形速率(>=8kHz) - 高级照明控制 - TI公司（Texas Instruments，德州仪器）
- Pre-Programmed Xilinx® PROM Configures the DLPC910ZYR
- Data Transfer up to 33 Mbps
- I/O Pins Compatible With 1.8 V to 3.3 V
- 1.8-V Core Supply Voltage
- –40°C to 85°C Operating Temperature Range
- Lithography
- Direct Imaging
- Flat Panel Display
- Printed Circuit Board Manufacturing
- Industrial
- 3D Printing
- 3D Scanners for Machine Vision
- Quality Control
- Displays
- 3D Imaging
- Augmented Reality and Information Overlay
The DLPR910 device is a programmed PROM used for properly configuring the DLPC910, which supports reliable operation of the DLP9000XFLS DMD. The DLPR910 configuration enables the DLPC910 to operate at a pixel data rate greater than 61 Gigabits per second (Gbps) with the option for random row addressing and Load4 capabilities.

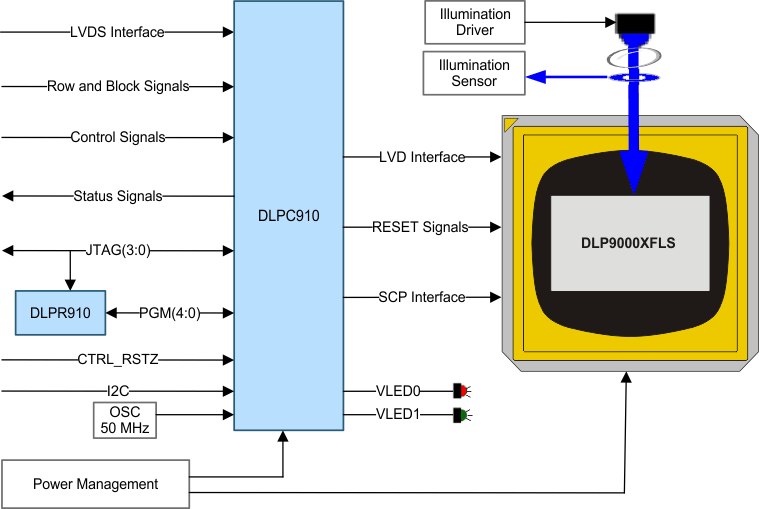

The DLPR910 device is part of a multiple component chipset in the DLP® Advanced Light Control portfolio. A dedicated chipset provides developers easier access to the DMD as well as high speed, independent micromirror control.
The DLPC910 configuration program is only available within the DLPR910. The DLPR910 requires that it be used in conjunction with the DLPC910 and the DLP9000XFLS components for reliable function and operation of the chipset.
For complete electrical and mechanical specifications of the DLPR910, see the XCF16P product specification at www.xilinx.com.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| DLPR910 | DSBGA (48) | 8.00 mm × 9.00 mm × 1.20 mm |
