DRV2603 - 用于 ERM/LRA 的触觉驱动器，带自动共振控制和模拟增益调整

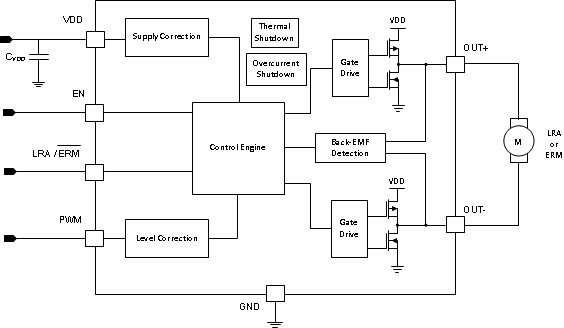

DRV2603是TI德州仪器公司的一款电机触觉驱动器产品，DRV2603是用于 ERM/LRA 的触觉驱动器，带自动共振控制和模拟增益调整，本站介绍了DRV2603的封装应用图解、特点和优点、功能等，并给出了与DRV2603相关的TI元器件型号供参考。

DRV2603 - 用于 ERM/LRA 的触觉驱动器，带自动共振控制和模拟增益调整 - 电机触觉驱动器 - 触觉驱动器 - 德州仪器

产品特性

Flexible Haptic/Vibra Driver
- LRA (Linear Resonance Actuator)
- ERM (Eccentric Rotating Mass)
Auto Resonance Tracking for LRA
- No Frequency Calibration Required
- Automatic Drive Commutation
- Automatic Braking Algorithm
- Wide Input PWM Frequency Range
Constant Vibration Strength Over Supply
Automatic Input Level Translation
0% to 100% Duty Cycle Control Range
Fast Start Up Time
Differential Drive from Single-Ended Input
Wide Supply Voltage Range of 2.5 V to 5.2 V
Immersion TouchSense® 3000 Compatible
1.8-V Compatible, 5-V Tolerant Digital Pins
Available in a 2 mm × 2 mm × 0.75 mm Leadless QFN Package (RUN)

产品应用

Mobile Phones and Tablets
Watches and Wearable Technology
Remote Controls, Mice, and Peripheral Devices
Electronic Point of Sale (ePOS)
Vibration Alerts and Notifications
Touch-Enabled Devices
Industrial Human-Machine Interfaces

产品说明

The DRV2603 is a haptic driver designed specifically to solve common obstacles in driving both Linear Resonance Actuator (LRA) and Eccentric Rotating Mass (ERM) haptic elements. The DRV2603 is designed for low latency, high efficiency, and more drive strength for actuators commonly used for tactile feedback in the portable market.

LRA actuators typically have a narrow frequency band over which they have an adequate haptic response. This frequency window is typically ±2.5 Hz wide or less, so driving an LRA actuator presents a challenge. The DRV2603 solves this problem by employing auto resonance tracking, which automatically detects and tracks the LRA resonant frequency in real time. This means that any input PWM frequency within the input range (10 kHz to 250 kHz) will automatically produce the correct resonant output frequency. As an additional benefit, the DRV2603 implements an automatic braking algorithm to prevent LRA ringing at the end of waveforms, leaving the user with a crisp haptic sensation.

For both ERM and LRA actuators, the automatic input level translation solves issues with low voltage PWM sources without adding additional external components, so if the digital I/O levels vary, the output voltage does not change. The DRV2603 also has supply correction that ensures no supply regulation is required for constant vibration strength, allowing an efficient, direct-battery connection.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
DRV2603	WQFN (10)	2.00 mm × 2.00 mm
