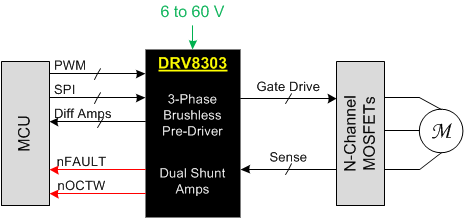

DRV8303-具有双路分流放大器的三相前置驱动器
DRV8303-刷直流栅极驱动器-刷直流(BLDC)驱动器-电机驱动器
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - DRV8303介绍

DRV8303 - 具有双路分流放大器的三相前置驱动器

DRV8303是TI德州仪器公司的一款无刷直流栅极驱动器产品，DRV8303是具有双路分流放大器的三相前置驱动器，本站介绍了DRV8303的封装应用图解、特点和优点、功能等，并给出了与DRV8303相关的TI元器件型号供参考。

DRV8303 - 具有双路分流放大器的三相前置驱动器 - 无刷直流栅极驱动器 - 无刷直流(BLDC)驱动器 - 德州仪器

产品特性
  • 6-V to 60-V Operating Supply Voltage Range
  • 1.7-A Source and 2.3-A Sink Gate Drive Current Capability
  • Slew Rate Control for EMI Reduction
  • Bootstrap Gate Driver With 100% Duty Cycle Support
  • 6 or 3 PWM Input Modes
  • Dual Integrated Current Shunt Amplifiers With Adjustable Gain and Offset
  • 3.3-V and 5V Interface Support
  • SPI Interface
  • Protection Features:
    • Programmable Dead Time Control (DTC)
    • Programmable Overcurrent Protection (OCP)
    • PVDD and GVDD Undervoltage Lockout (UVLO)
    • GVDD Overvoltage Lockout (OVLO)
    • Over-Temperature Warning/Shutdown (OTW/OTS)
    • Reported through nFAULT, nOCTW, and SPI Registers
产品应用
  • 3-Phase BLDC and PMSM Motors
  • CPAP and Pump
  • E-Bikes
  • Power Tools
  • Robotics and RC Toys
  • Industrial Automation
产品说明

The DRV8303 is a gate driver IC for three phase motor drive applications. It provides three half bridge drivers, each capable of driving two N-channel MOSFETs. It supports up to 1.7-A source and 2.3-A peak current capability. The DRV8303 can operate off of a single power supply with a wide range from 6-V to 60-V. It uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8303 uses automatic hand shaking when the high side or low side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high and low side MOSFETs is used to protect the external power stage against overcurrent conditions.

The DRV8303 includes two current shunt amplifiers for accurate current measurement. The amplifiers support bi-directional current sensing and provide and adjustable output offset up to 3 V.

The SPI interface provides detailed fault reporting and flexible parameter settings such as gain options for the current shunt amplifiers and slew rate control of the gate drivers.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
DRV8303DCA (48)12.50 mm × 6.10 mm
