LDC1614 - 具有 I2C 的四通道、28 位电感数字转换器

LDC1614是TI德州仪器公司的一款电感数字转换器产品，LDC1614是具有 I2C 的四通道、28 位电感数字转换器，本站介绍了LDC1614的封装应用图解、特点和优点、功能等，并给出了与LDC1614相关的TI元器件型号供参考。

LDC1614 - 具有 I2C 的四通道、28 位电感数字转换器 - 电感数字转换器 - 电感式传感 - 德州仪器

产品特性

Easy-to-use – minimal configuration required
Measure up to 4 sensors with one IC
Multiple channels support environmental and aging compensation
Multi-channel remote sensing provides lowest system cost
Pin-compatible medium and high-resolution options
- LDC1312/4: 2/4-ch 12-bit LDC
- LDC1612/4: 2/4-ch 28-bit LDC
Sensing range beyond two coil diameters
Supports wide sensor frequency range of 1kHz to 10MHz
Power consumption:
- 35 µA Low Power Sleep Mode
- 200 nA Shutdown Mode
3.3V operation
Support internal or external reference clock
Immune to DC magnetic fields and magnets

产品应用

Knobs in consumer, appliances, and automotive
Linear and rotational encoders
Buttons in home electronics, wearables, manufacturing, and automotive
Keypads in manufacturing and appliances
Slider buttons in consumer products
Metal detection in industrial and automotive
POS and EPOS
Flow meters in consumer and appliances

产品说明

The LDC1612 and LDC1614 are 2- and 4-channel, 28-bit inductance to digital converters (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1612 and LDC1614 enable the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency be within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables use of very small PCB coils, further reducing sensing solution cost and size.

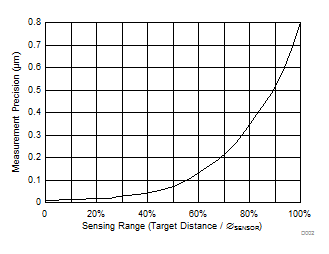

The high resolution channels allow for a much larger sensing range, maintaining good performance beyond two coil diameters. Well-matched channels allow for differential and ratiometric measurements, which enable designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and mechanical drift.

Given their ease of use, low power, and low system cost these products enable designers to greatly improve performance, reliability, and flexibility over existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications.

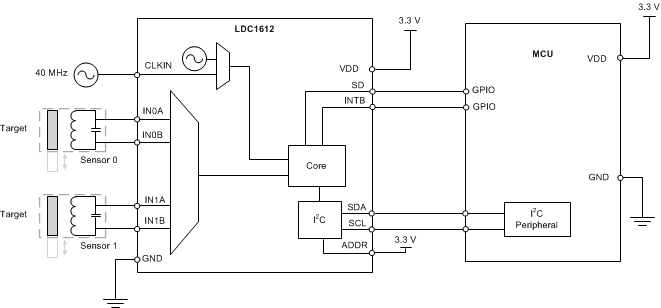

These devices are easily configured via an I2C interface. The two-channel LDC1612 is available in a WSON-12 package and the four-channel LDC1614 is available in a WQFN-16 package.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LDC1612	WSON-12	4 mm × 4 mm
LDC1614	WQFN-16	4 mm × 4 mm
