LM2941 - 1A 低压降可调节稳压器

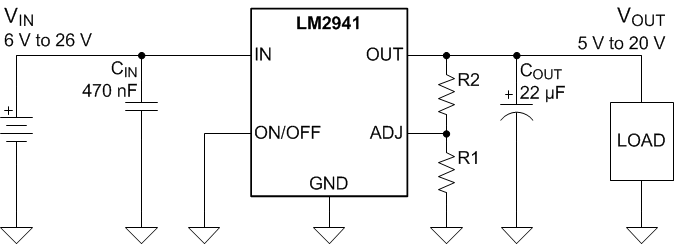

LM2941是TI德州仪器公司的一款单通道LDO产品，LM2941是1A 低压降可调节稳压器，本站介绍了LM2941的封装应用图解、特点和优点、功能等，并给出了与LM2941相关的TI元器件型号供参考。

LM2941 - 1A 低压降可调节稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Operating VIN Range: 6 V to 26 V
Output Voltage Adjustable From 5 V to 20 V
Dropout Voltage Typically 0.5 V at IOUT = 1 A
Output Current in Excess of 1 A
Trimmed Reference Voltage
Reverse Battery Protection
Internal Short-Circuit Current Limit
Mirror Image Insertion Protection
P+ Product Enhancement Tested
TTL, CMOS Compatible ON/OFF Switch
WSON Space-Saving Package

产品应用

Industrial
Automotive

产品说明

The LM2941 positive voltage regulator features the ability to source 1 A of output current with a typical dropout voltage of 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN− VOUT≤ 3 V).

Designed also for vehicular applications, the LM2941 and all regulated circuitry are protected from reverse battery installations or two-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. Familiar regulator features such as short circuit and thermal overload protection are also provided.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM2941	WSON (8)	4.00 mm x 4.00 mm
	TO-263 (5)	10.16 mm x 8.42 mm
	TO-220 (5)	14.986 mm x 10.16 mm
	TO-220 (5)	10.16 mm x 8.51 mm
LM2941C	TO-263 (5)	10.16 mm x 8.42 mm
	TO-220 (5)	14.986 mm x 10.16 mm
	TO-220 (5)	10.16 mm x 8.51 mm
