LM34 - 采用华氏刻度校准且支持 30V 电源电压的 ±1°F 模拟输出温度传感器
LM34是TI德州仪器公司的一款本地温度传感器产品,LM34是采用华氏刻度校准且支持 30V 电源电压的 ±1°F 模拟输出温度传感器,本站介绍了LM34的封装应用图解、特点和优点、功能等,并给出了与LM34相关的TI元器件型号供参考。
LM34 - 采用华氏刻度校准且支持 30V 电源电压的 ±1°F 模拟输出温度传感器 - 本地温度传感器 - 温度传感器和控制IC - 德州仪器
- Calibrated Directly in Degrees Fahrenheit

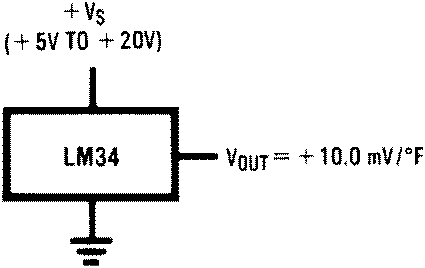

- Linear 10.0 mV/°F Scale Factor
- 1.0°F Accuracy Assured (at 77°F)
- Rated for Full −50° to 300°F Range
- Suitable for Remote Applications
- Low Cost Due to Wafer-Level Trimming
- Operates From 5 to 30 Volts
- Less Than 90-μA Current Drain
- Low Self-Heating, 0.18°F in Still Air
- Nonlinearity Only ±0.5°F Typical
- Low-Impedance Output, 0.4 Ω for 1-mA Load
- Power Supplies
- Battery Management
- HVAC
- Appliances

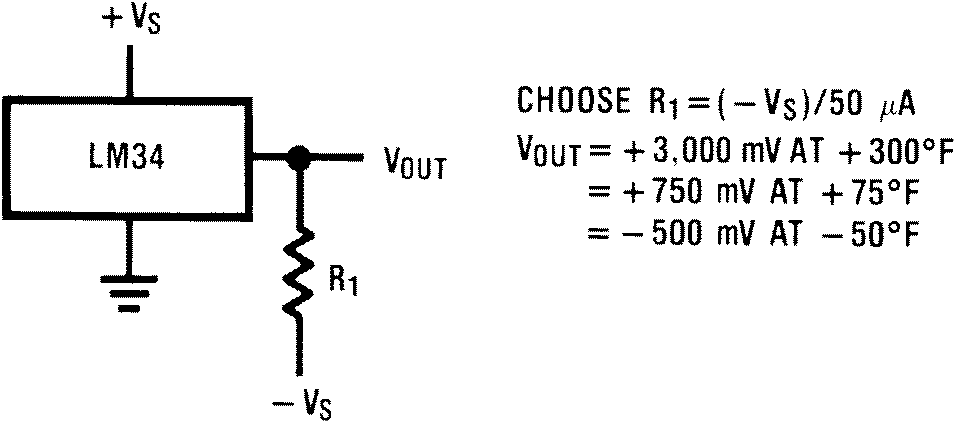

The LM34 series devices are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Fahrenheit temperature. The LM34 device has an advantage over linear temperature sensors calibrated in degrees Kelvin, because the user is not required to subtract a large constant voltage from its output to obtain convenient Fahrenheit scaling. The LM34 device does not require any external calibration or trimming to provide typical accuracies of ±1/2°F at room temperature and ±1-1⁄2°F over a full −50°F to 300°F temperature range. Lower cost is assured by trimming and calibration at the wafer level. The low output impedance, linear output, and precise inherent calibration of the LM34 device makes interfacing to readout or control circuitry especially easy. It can be used with single power supplies or with plus and minus supplies. Because the LM34 device draws only 75 µA from its supply, the device has very low self-heating, less than 0.2°F in still air.
The LM34 device is rated to operate over a −50°F to 300°F temperature range, while the LM34C is rated for a −40°F to 230°F range (0°F with improved accuracy). The LM34 devices are series is available packaged in hermetic TO-46 transistor packages; while the LM34C, LM34CA, and LM34D are available in the plastic TO-92 transistor package. The LM34D device is available in an 8-lead, surface-mount, small-outline package. The LM34 device is a complement to the LM35 device (Centigrade) temperature sensor.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LM34 | SOIC (8) | 4.90 mm × 3.91 mm |
| TO-92 (3) | 4.30 mm × 4.30 mm | |
| TO-46 (3) | 4.699 mm × 4.699 mm |
