LM3475技术文档下载：

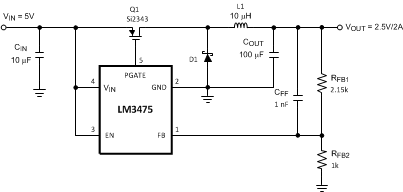

LM3475 - 产品图解：
LM3475 - 滞后 PFET 降压控制器
LM3475是TI公司的一款控制器（外部开关）产品，LM3475是滞后 PFET 降压控制器，本页介绍了LM3475的产品说明、应用、特性等，并给出了与LM3475相关的TI元器件型号供参考。
LM3475 - 滞后 PFET 降压控制器 - 控制器（外部开关） - DC/DC开关稳压器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Easy-to-Use Control Methodology
- 0.8 V to VIN Adjustable Output Range
- High Efficiency (90% Typical)
- ±0.9% (±1.5% Over Temperature) Feedback Voltage
- 100% Duty Cycle Capable
- Maximum Operating Frequency up to 2 MHz
- Internal Soft-Start
- Enable Pin
产品应用
- TFT Monitor
- Auto PC
- Vehicle Security
- Navigation Systems
- Notebook Standby Supply
- Battery Powered Portable Applications
- Distributed Power Systems
产品说明
The LM3475 is a hysteretic P-FET buck controller designed to support a wide range of high efficiency applications in a very small SOT-23-5 package. The hysteretic control scheme has several advantages, including simple system design with no external compensation, stable operation with a wide range of components, and extremely fast transient response. Hysteretic control also provides high efficiency operation, even at light loads. The PFET architecture allows for low component count as well as 100% duty cycle and ultra-low dropout operation.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LM3475 | SOT-23 (5) | 1.60 mm × 2.90 mm |
